ADF pickup roller
CAUTION: Do not touch the surface of the roller. Skin oils deposited on the roller might cause print-
quality problems.

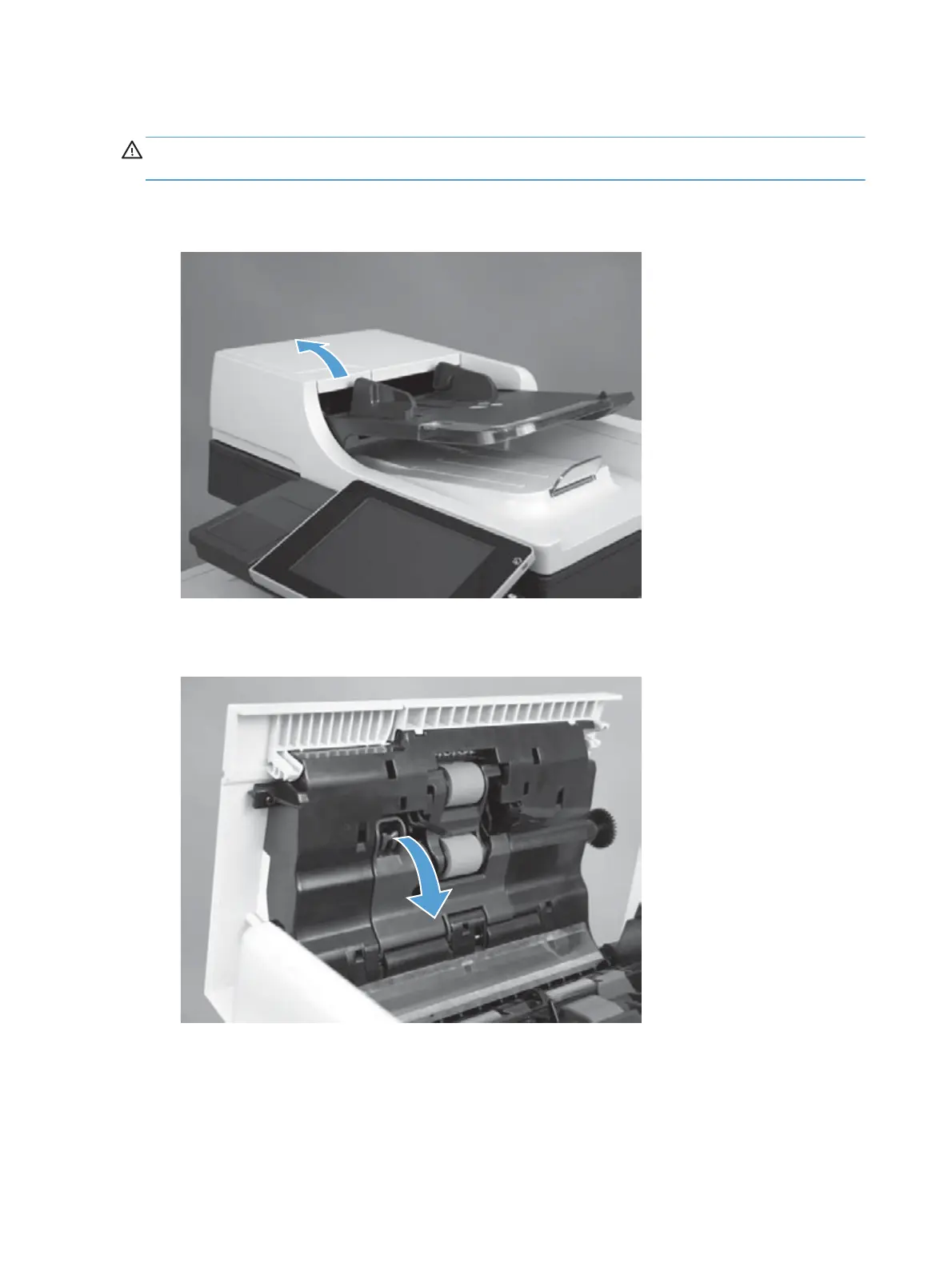

1. Open the jam-access cover.
Figure 1-28 Remove the ADF pickup roller (1 of 4)
2. Open the roller-access cover.
Figure 1-29 Remove the ADF pickup roller (2 of 4)
24 Chapter 1 Removal and replacement ENWW
