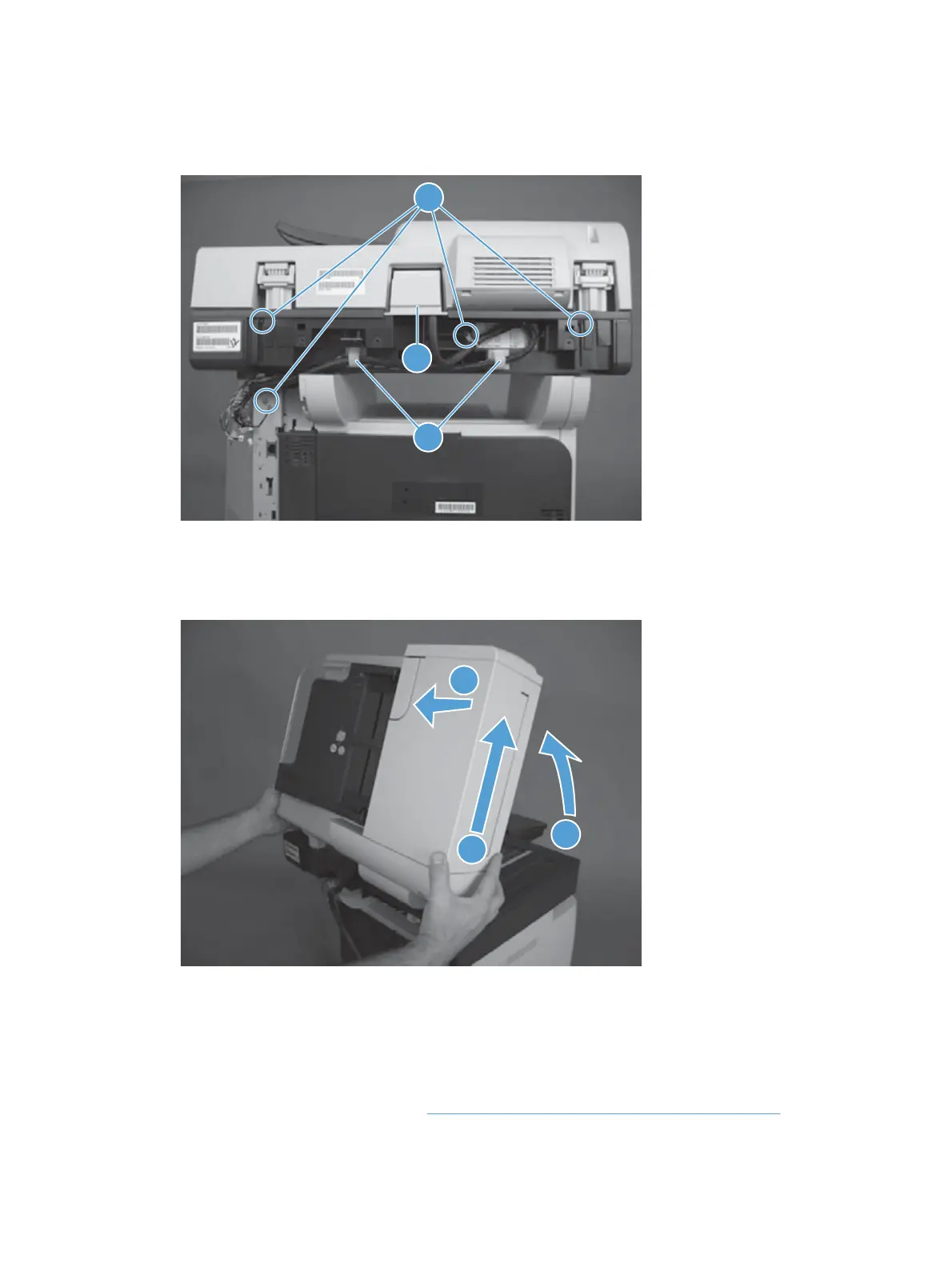

4. Remove four screws (callout 1), release the wire harness from two retainers (callout 2), and then
remove one cover (callout 3).
Figure 1-134 Remove the ADF whole unit kit (3 of 4)
2
1
3
5. Open the ADF (callout 1). Lift the ADF (callout 2) until it stops, and then pull it toward the rear of
the product (callout 3) to remove.
Figure 1-135 Remove the ADF (3 of 4)
1
2
3
Reinstall the ADF
Install foam reflector kit on the new ADF
If a replacement ADF, image scanner, or both assemblies are installed, you must install a
replacement foam reflector kit. See
Foam reflector kit (white ADF backing) on page 19.
88 Chapter 1 Removal and replacement ENWW
