Formatter PCA
WARNING! ESD sensitive component.
1. Before proceeding, remove the following:
Formatter cover. See
Formatter cover on page 37.
2. Open the formatter cage.

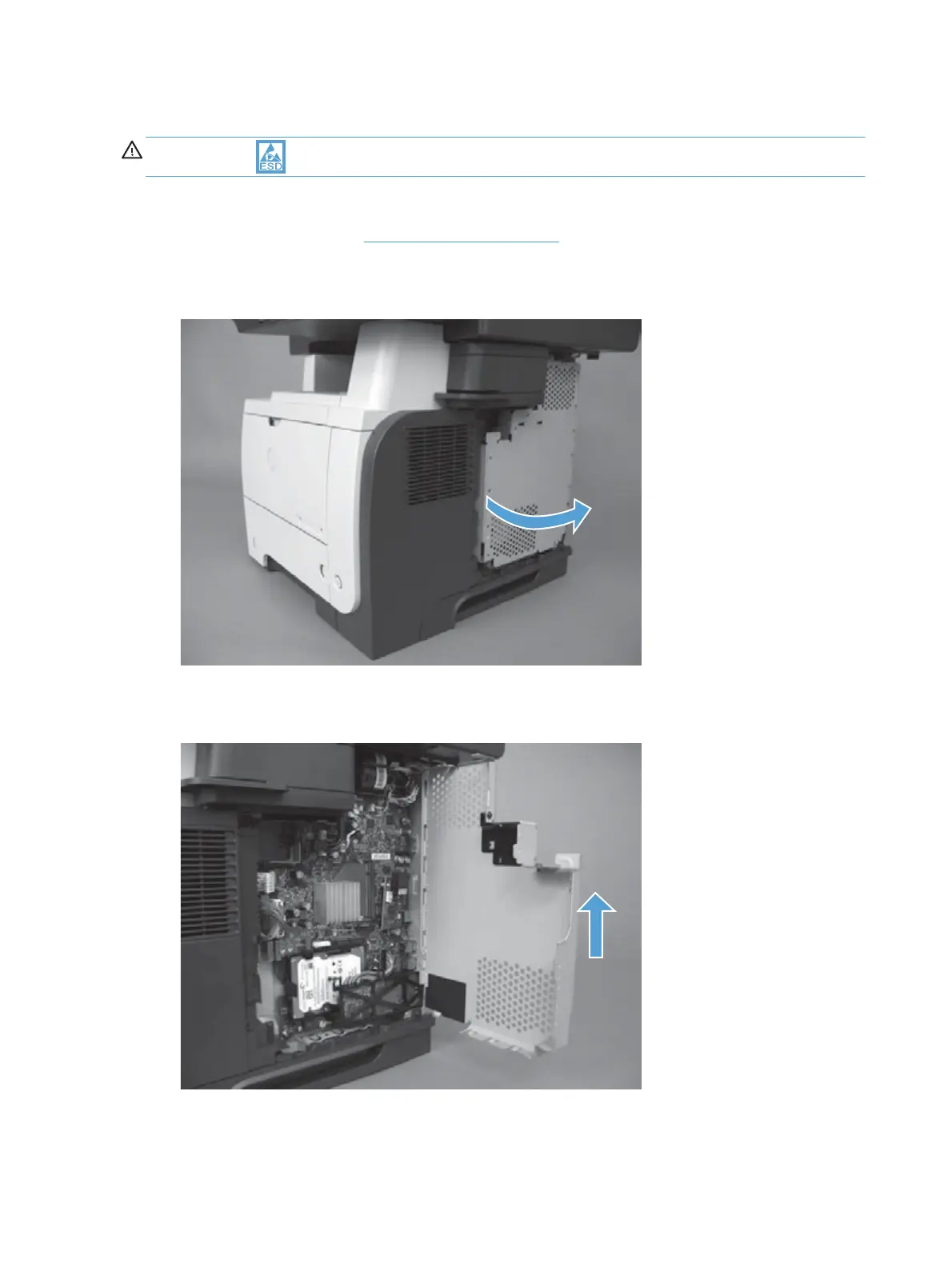

Figure 1-52 Remove the formatter PCA (1 of 4)
3. Lift and remove the sheet-metal door.
Figure 1-53 Remove the formatter PCA (2 of 4)
38 Chapter 1 Removal and replacement ENWW
