4. Disconnect 12 connectors.
NOTE: To locate the formatter connector locations, see Formatter connections on page 9.

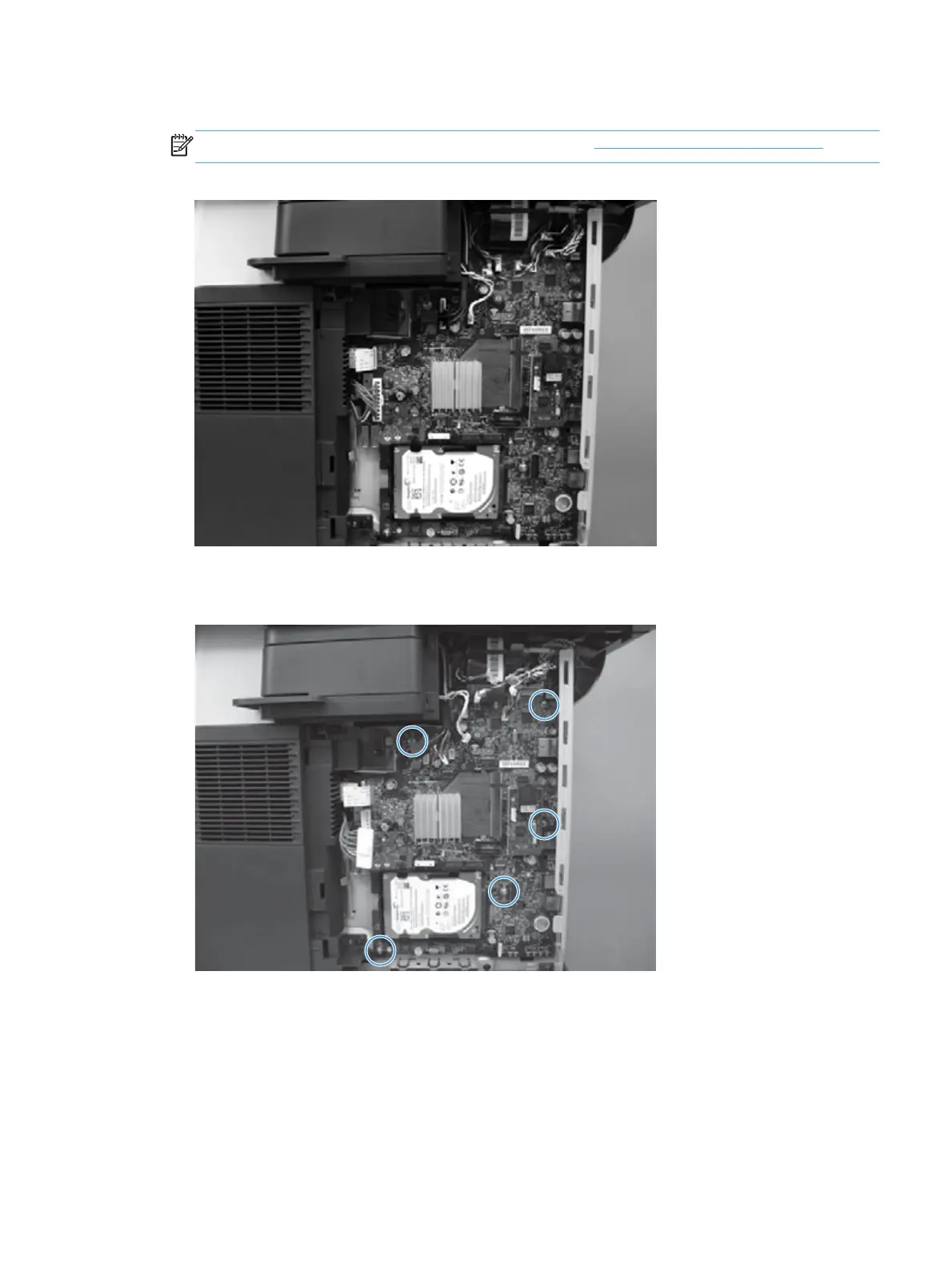

Figure 1-54 Remove the formatter PCA (3 of 4)
5. Remove five screws and then carefully remove the formatter PCA.
Figure 1-55 Remove the formatter PCA (4 of 4)
ENWW
Removal and replacement procedures
39
