Duplex media-feed assembly
1. Before proceeding, remove the following components:
Rear cover assembly. See
Rear cover assembly on page 44.
Right-rear cover. See
Right-rear cover on page 50.
2. Release two tabs (callout 1) on the duplex media-feed guide, and then slide the guide toward the
back of the product to remove it.
Reinstallation tip Make sure that both tabs snap back into place when reinstalling the duplex
media-feed guide.

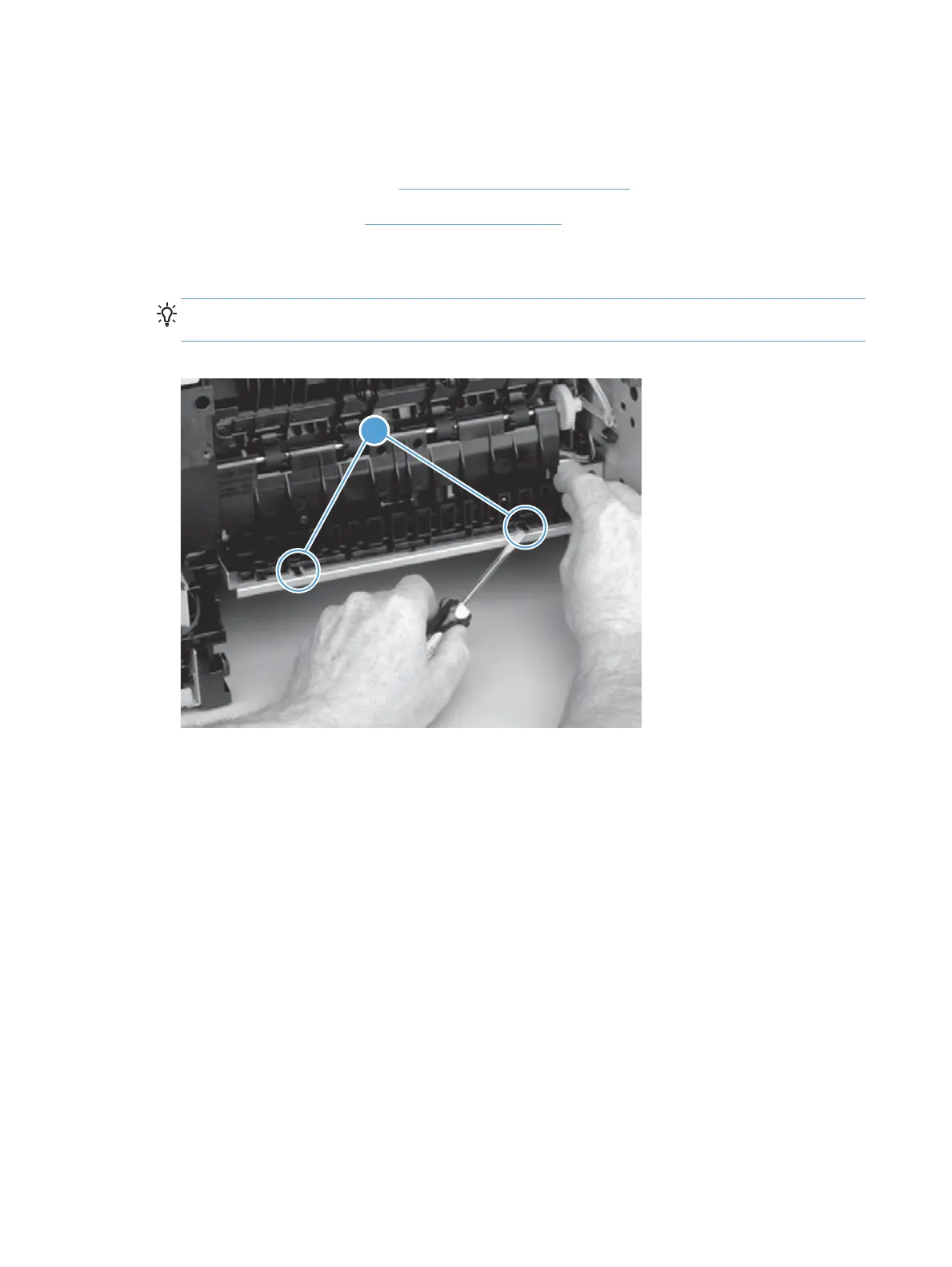

Figure 1-162 Remove the duplex media-feed assembly (1 of 5)
1
108 Chapter 1 Removal and replacement ENWW
