Tray 1 separation pad
CAUTION: Do not touch the surface of the pad. Skin oils deposited on the roller might cause paper-
handling problems.

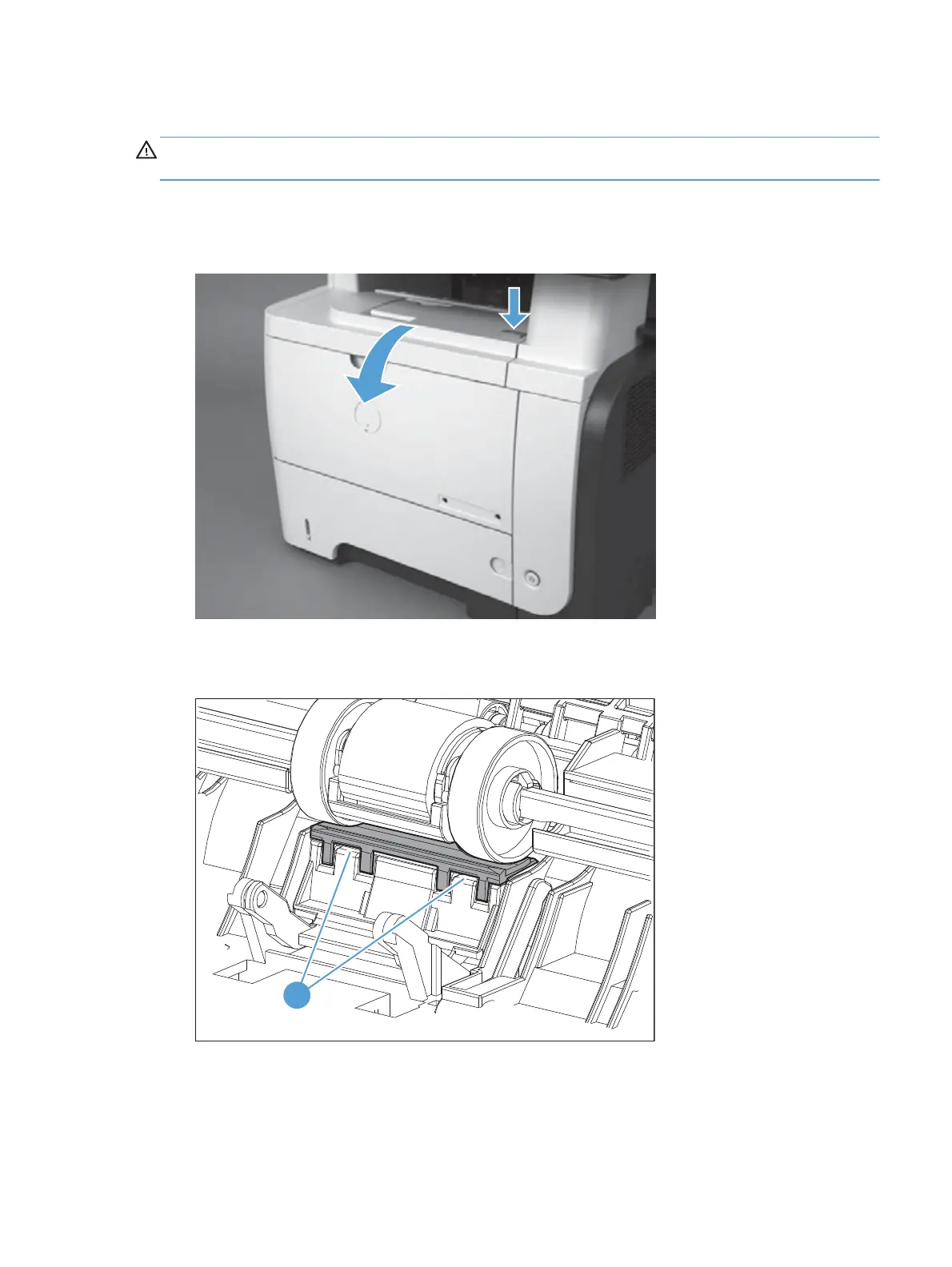

1. Press the cartridge-door release button, and then open the cartridge door. Make sure that the door
is completely open.
Figure 1-145 Remove the Tray 1 separation pad (1 of 2)
2. Release two tabs (callout 1), and then remove the separation pad.
Figure 1-146 Remove the Tray 1 separation pad (2 of 2)
1
