Cartridge-door assembly
1. Before proceeding, remove the following:
Rear cover assembly. See
Rear cover assembly on page 44.
Left cover. See
Left cover on page 48.
Tray 1 cover. See
Tray 1 cover on page 52.
TIP: The cartridge-door assembly can be removed without removing the Tray 1 cover.
However, it is easier to remove and reinstall the door assembly when the Tray 1 cover is not
installed.
2. Remove one spring (callout 1).

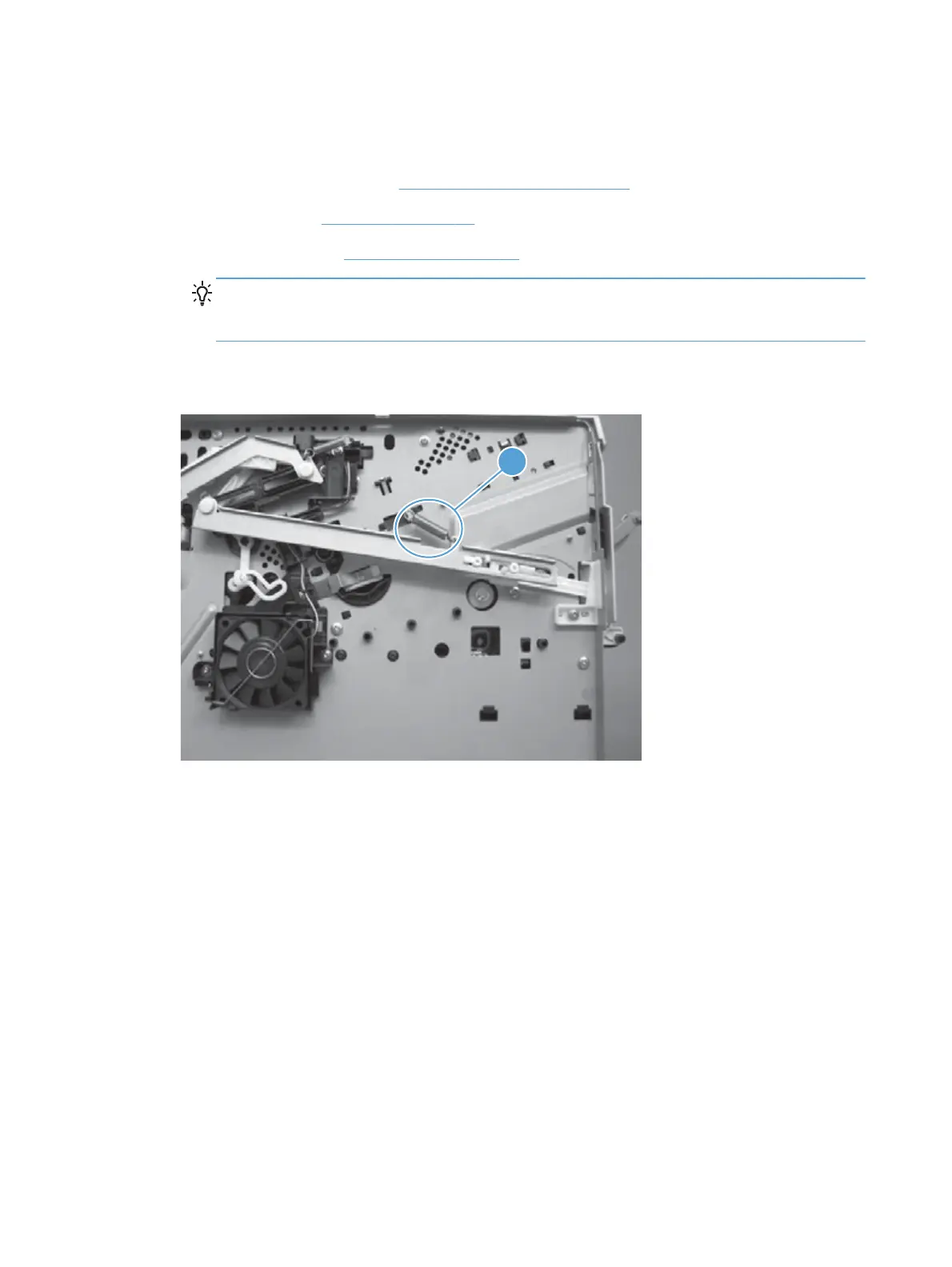

Figure 1-80 Remove the cartridge-door assembly (1 of 3)
1
54 Chapter 1 Removal and replacement ENWW
