ADF roller cover
1. Before proceeding, remove the following:
ADF jam access cover. See
ADF jam access cover on page 74.
2. Remove three springs.
Reinstallation tip Use needle nose pliers to reattach the spring. Attach the spring to the
bottom hook first.

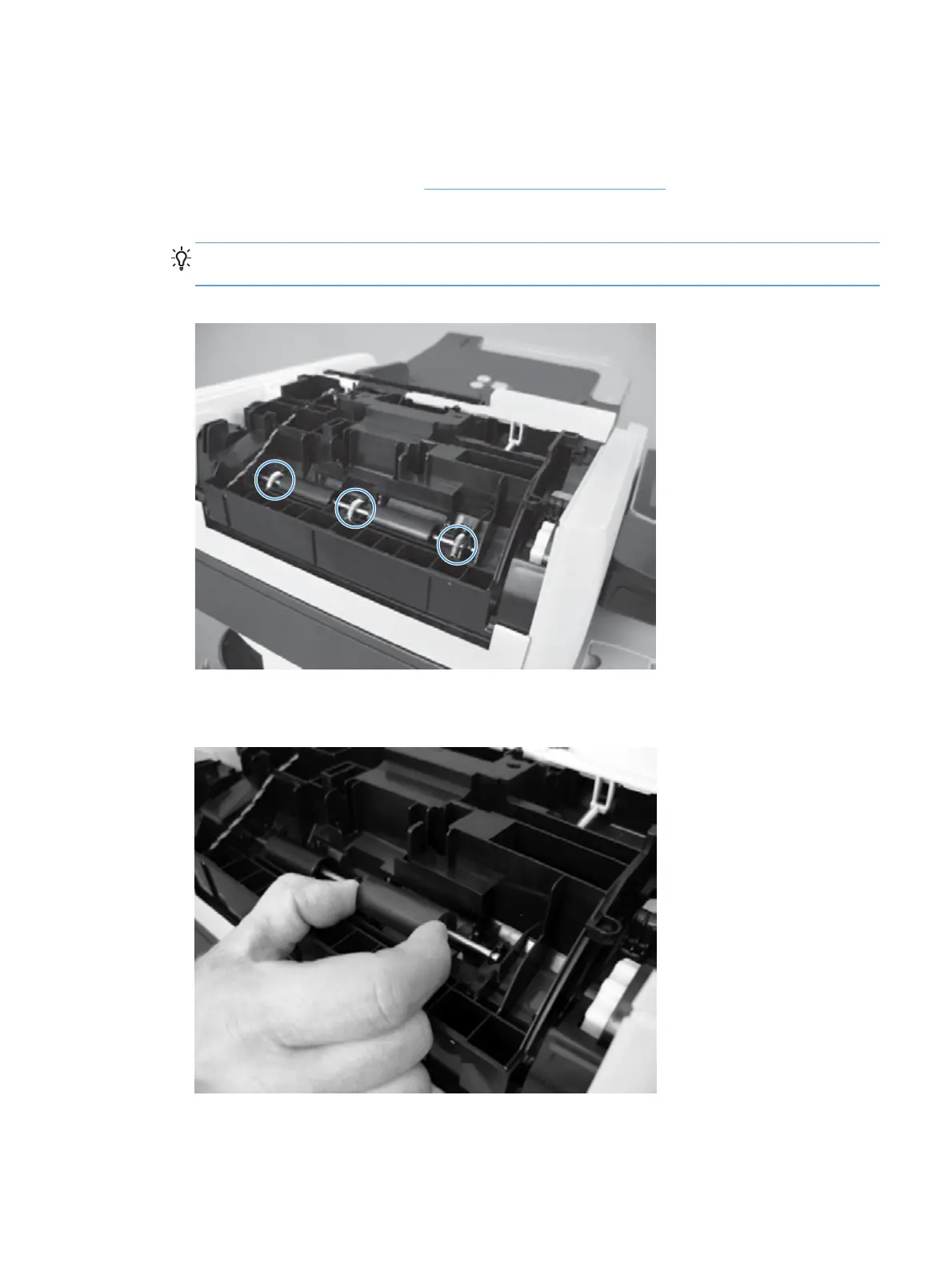

Figure 1-117 Remove the ADF roller cover (1 of 4)
3. Lift and slide the rod.
Figure 1-118 Remove the ADF roller cover (2 of 4)
ENWW
Removal and replacement procedures
77
