External panels, covers, do
ors, formatter, and stapler
Formatter cover
▲
Slide the formatter cover toward th
e rear of the product to remove.

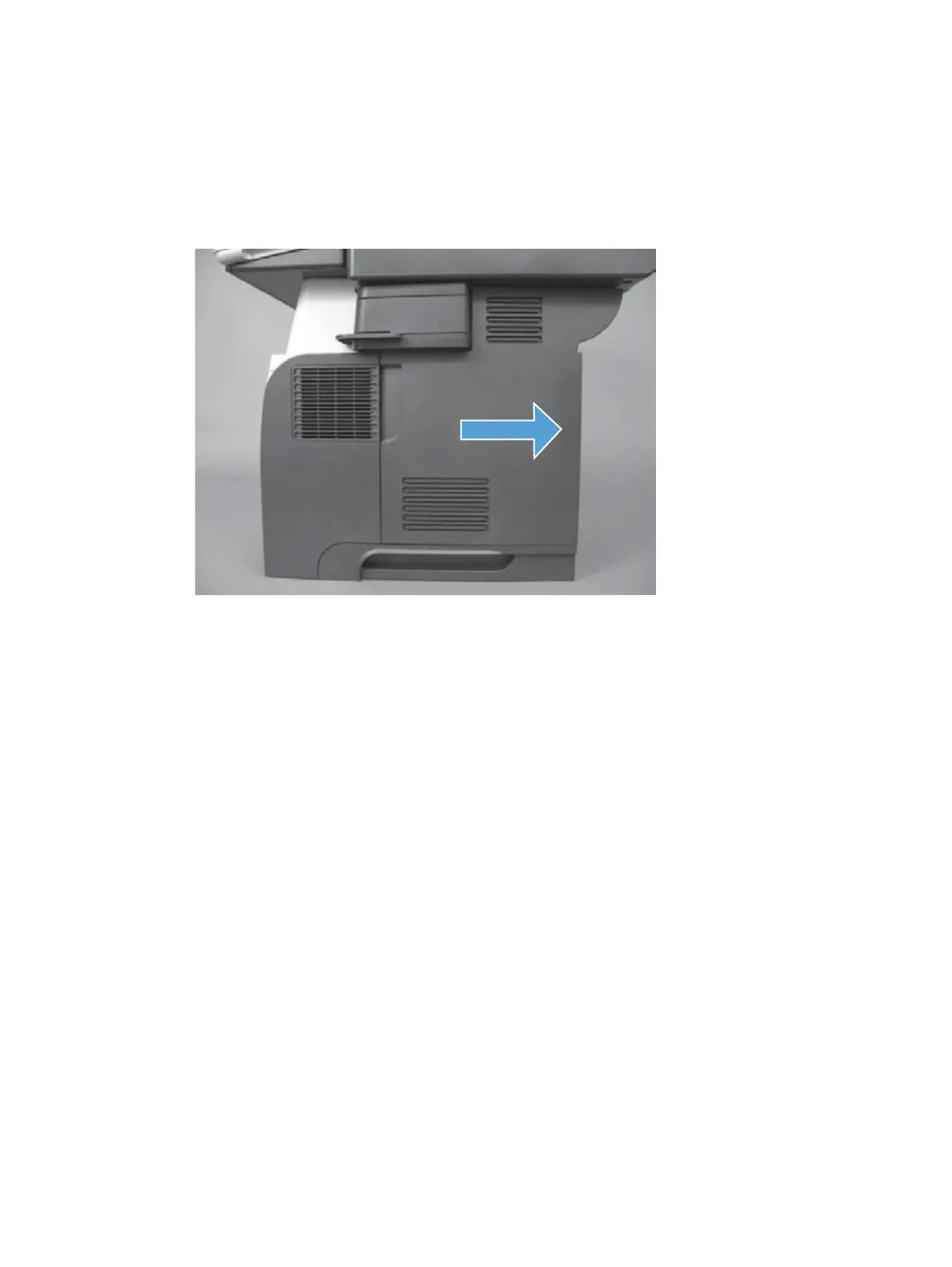

Figure 1-51
Remove the formatter cover
ENWW
Removal and replacement proc
edures
37
