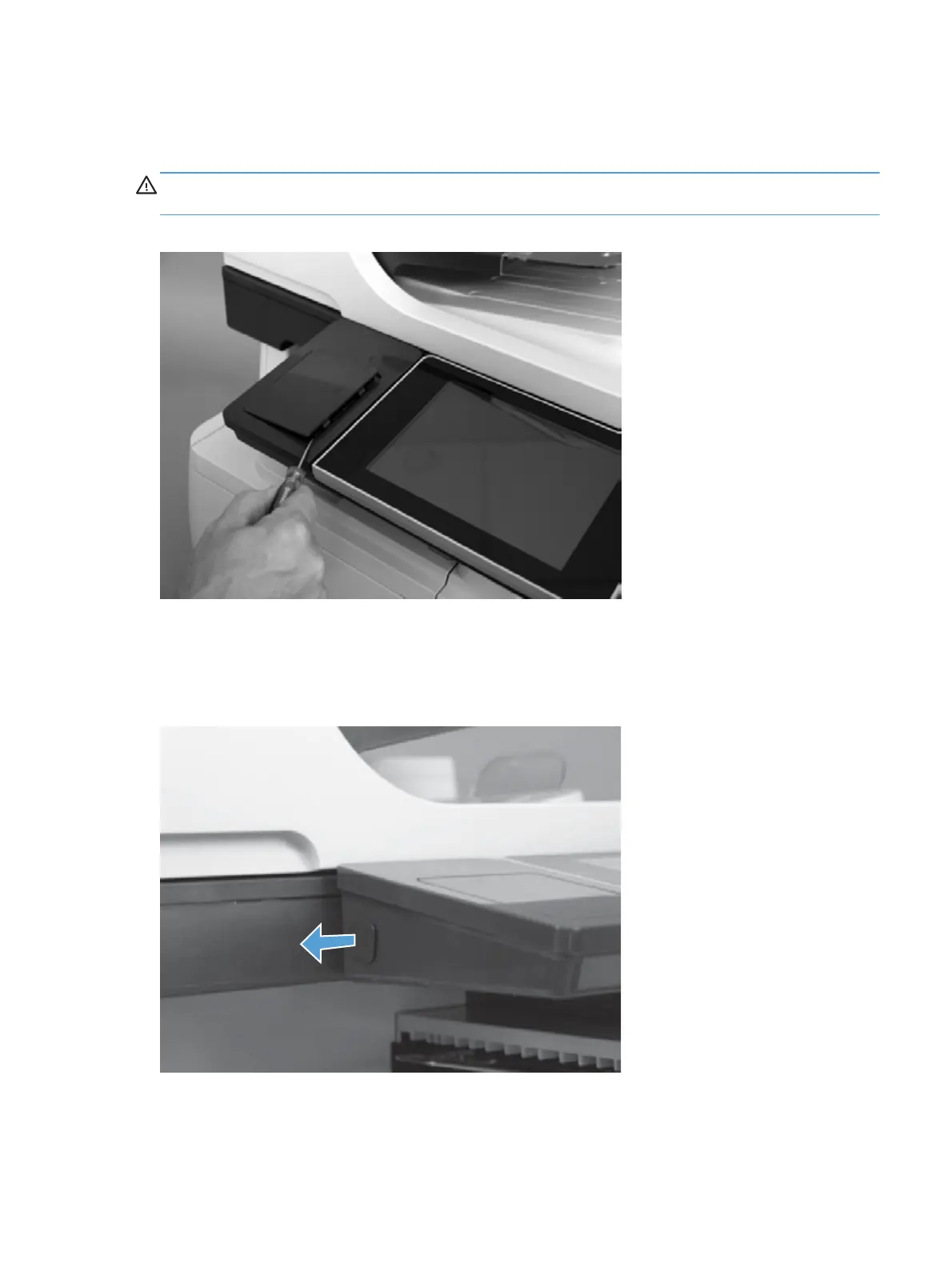

Control-panel HIP cover
Use a small flat blade screwdriver to carefully separate the cover from the product.
CAUTION: There are two tabs along each of the long edges of the cover that fasten the cover to the
product. Do not break the tabs when the cover is removed.
Figure 1-10 Remove the control-panel HIP cover
Control-panel USB cover
Remove the small cover from USB port on the left side of the control-panel assembly.
Figure 1-11 Remove control-panel USB cover
ENWW
Removal and replacement procedures
15
