Right-rear cover
1. Before proceeding, remove the following:
●
Formatter cover. See
Formatter cover on page 37.
●
Rear cover assembly. See
Rear cover assembly on page 44.
2. Slide the right-rear cover toward the inside of the product to release it.

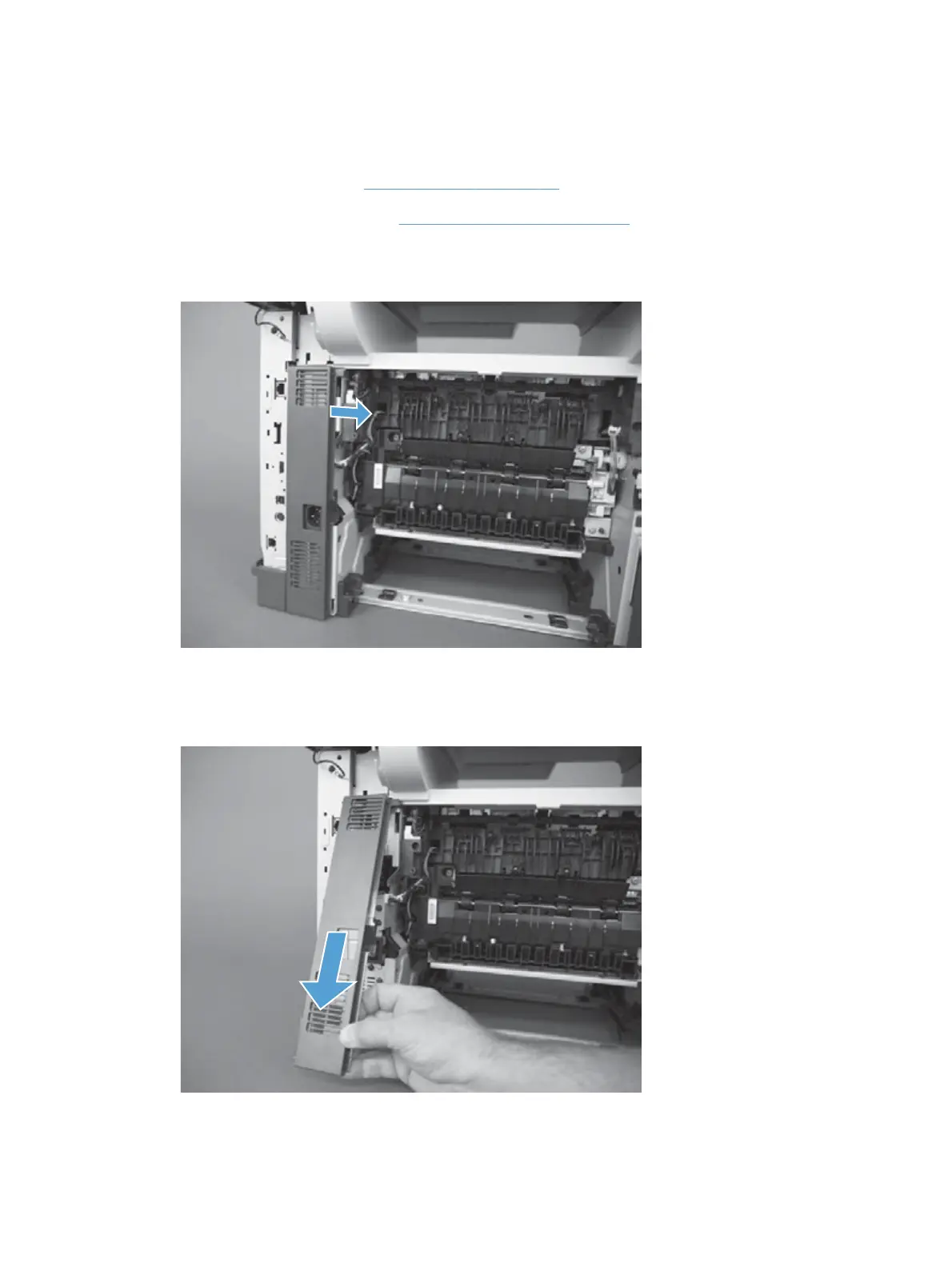

Figure 1-74 Remove the right-rear cover (1 of 2)
3. Rotate the bottom of the cover away from the product, and then pull down on the cover to remove
it.
Figure 1-75 Remove the right-rear cover (2 of 2)
