Fax card and cable
WARNING! ESD sensitive component.
1. Before proceeding, remove the following:
●
Formatter cover. See
Formatter cover on page 37.
2. Open the formatter cage.

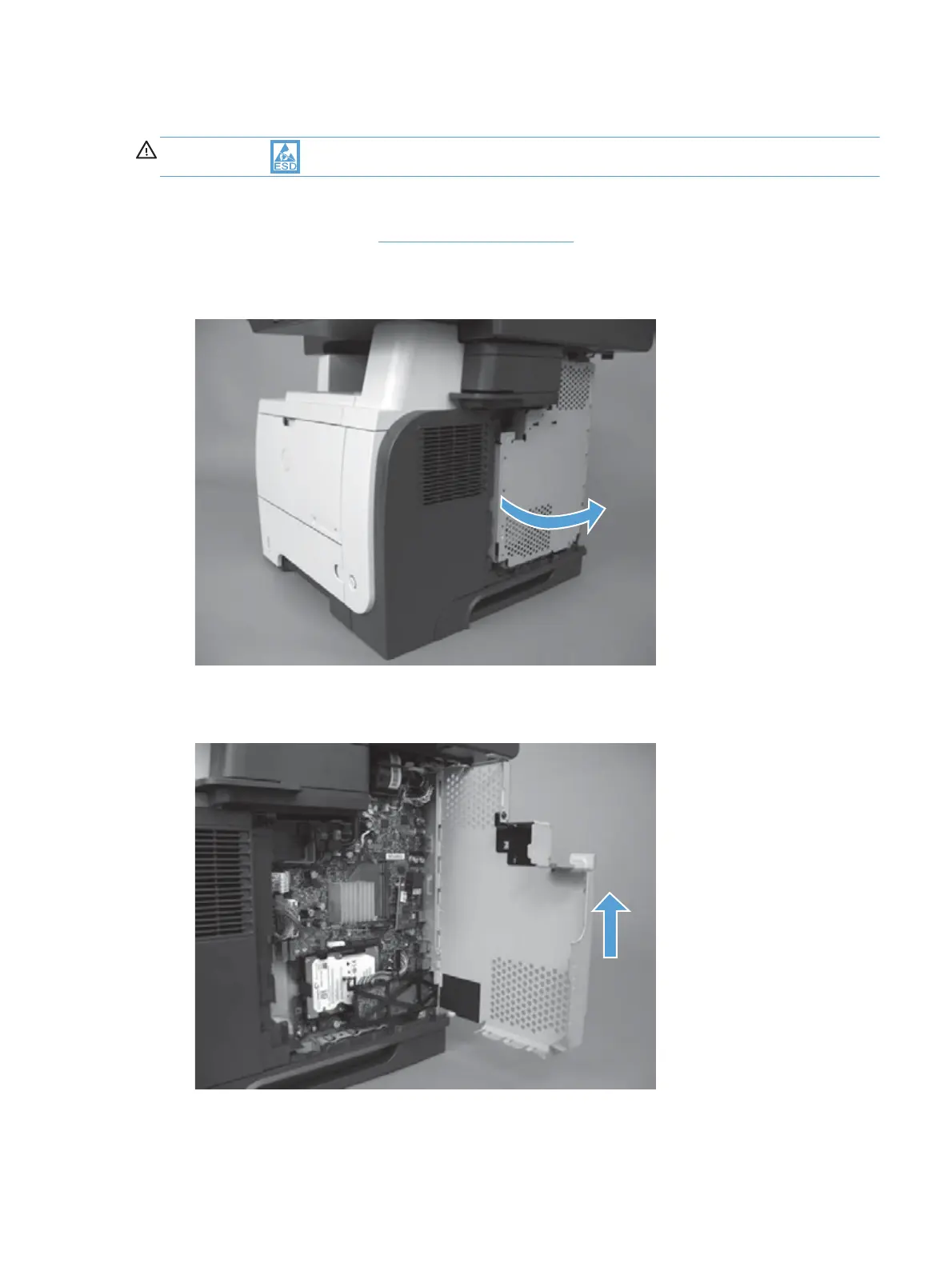

Figure 1-38 Remove the fax card and cable (1 of 4)
3. Lift and remove the sheet-metal door.
Figure 1-39 Remove the fax card and cable (2 of 4)
