Remove the SSM
CAUTION: ESD sensitive component.
NOTE: If you install a replacement solid state memory (SSM), you must reload the product firmware.
See
Reload the firmware on page 36.
1. Before proceeding, remove the following:
●
Formatter cover. See
Formatter cover on page 37.
2. Open the formatter cage.

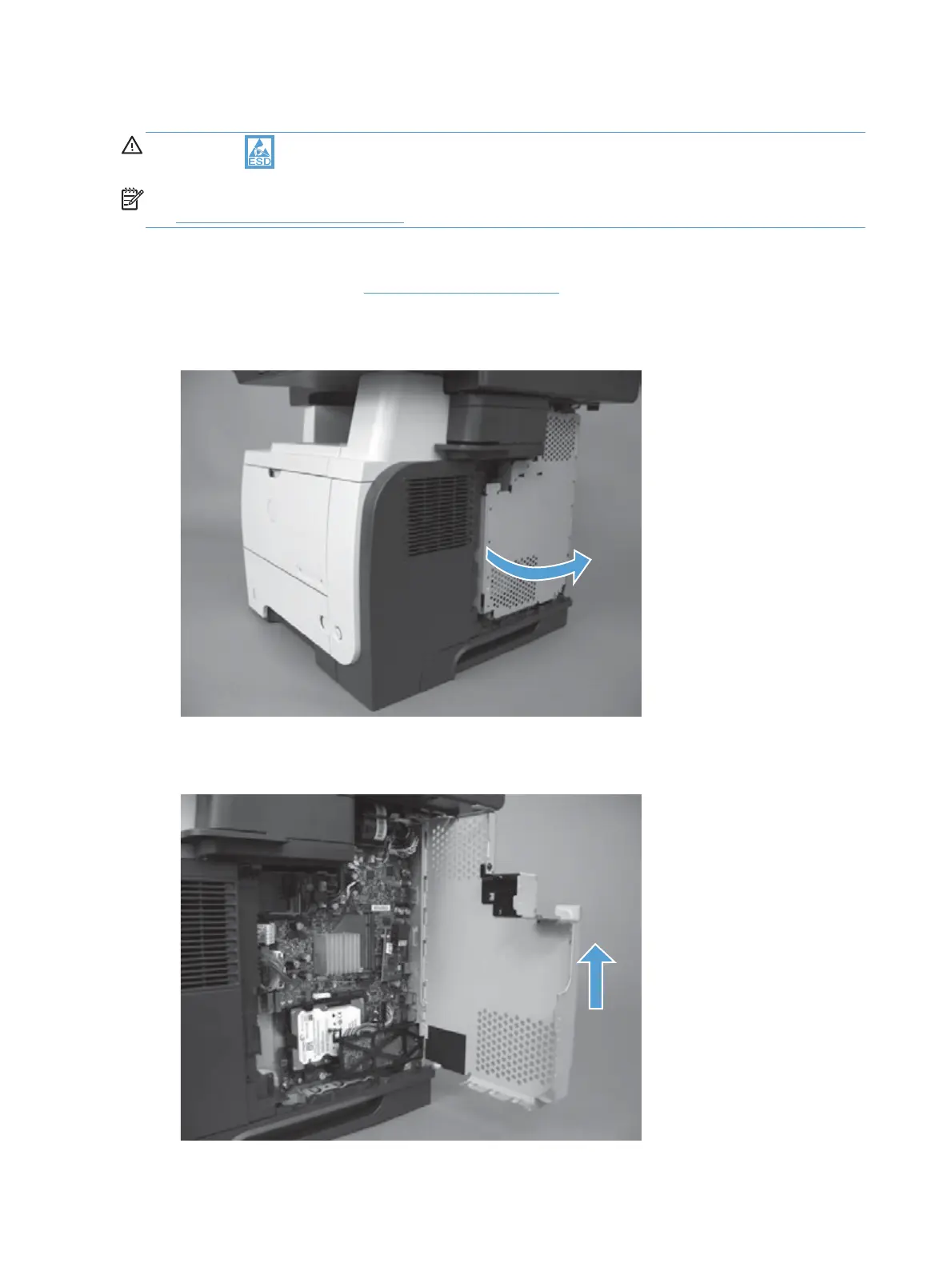

Figure 1-47 Remove the SSM (1 of 4)
3. Lift and remove the sheet-metal door.
Figure 1-48 Remove the SSM (2 of 4)
