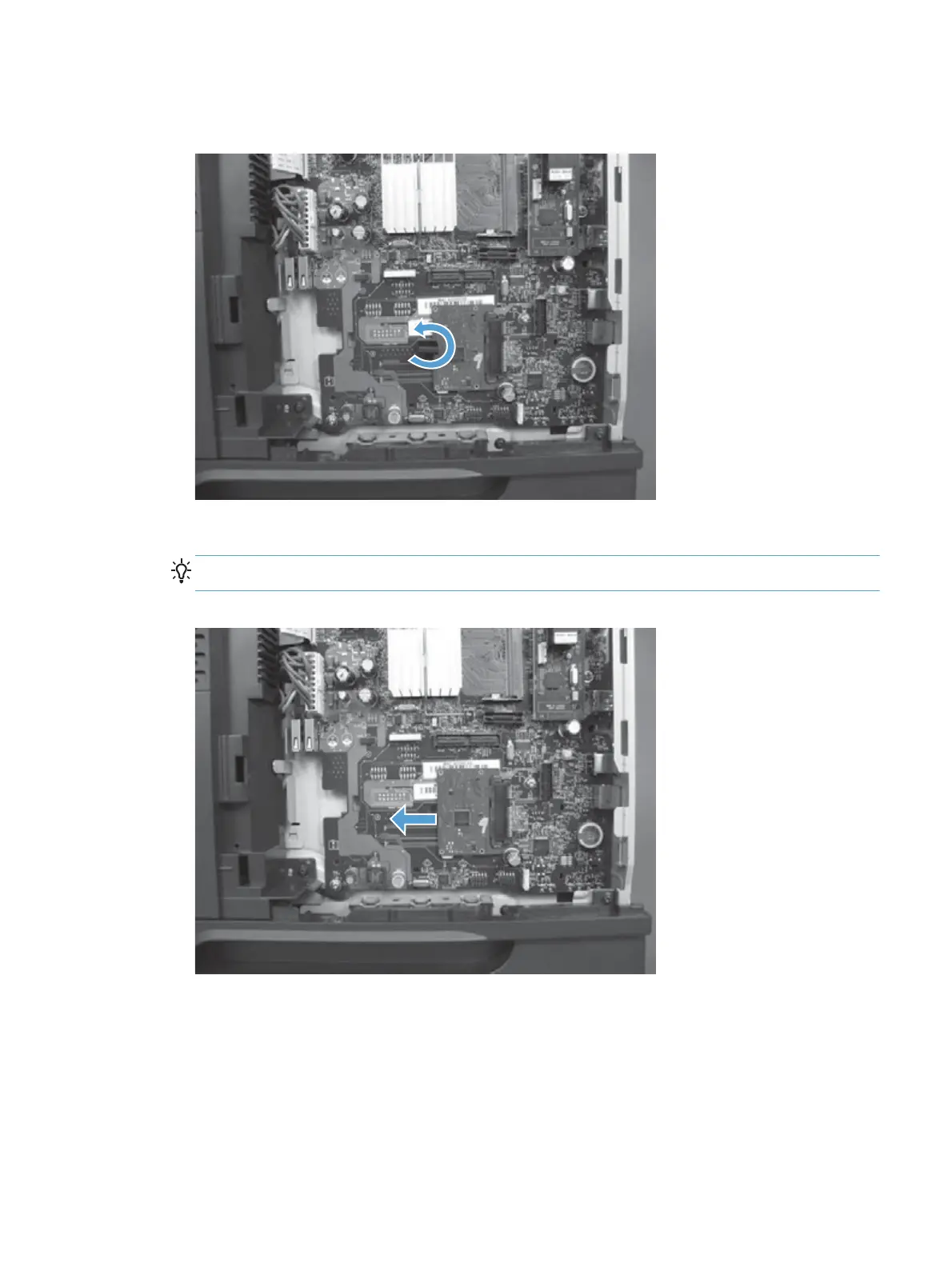

4. Turn the locking tab to release it, and then remove the tab.
Figure 1-49 Remove the SSM (3 of 4)
5. Slide the SSM toward the edge of the formatter to remove it.
Reinstallation tip The SSM is keyed and can only be installed one way.
Figure 1-50 Remove the SSM (4 of 4)
ENWW
Removal and replacement procedures
35
