Stapler cover
Products without a stapler have a substitute stapler cover. See Substitute stapler cover on page 42.
1. Before proceeding, remove the following components:
Formatter cover. See
Formatter cover on page 37.
2. Open the formatter cage.

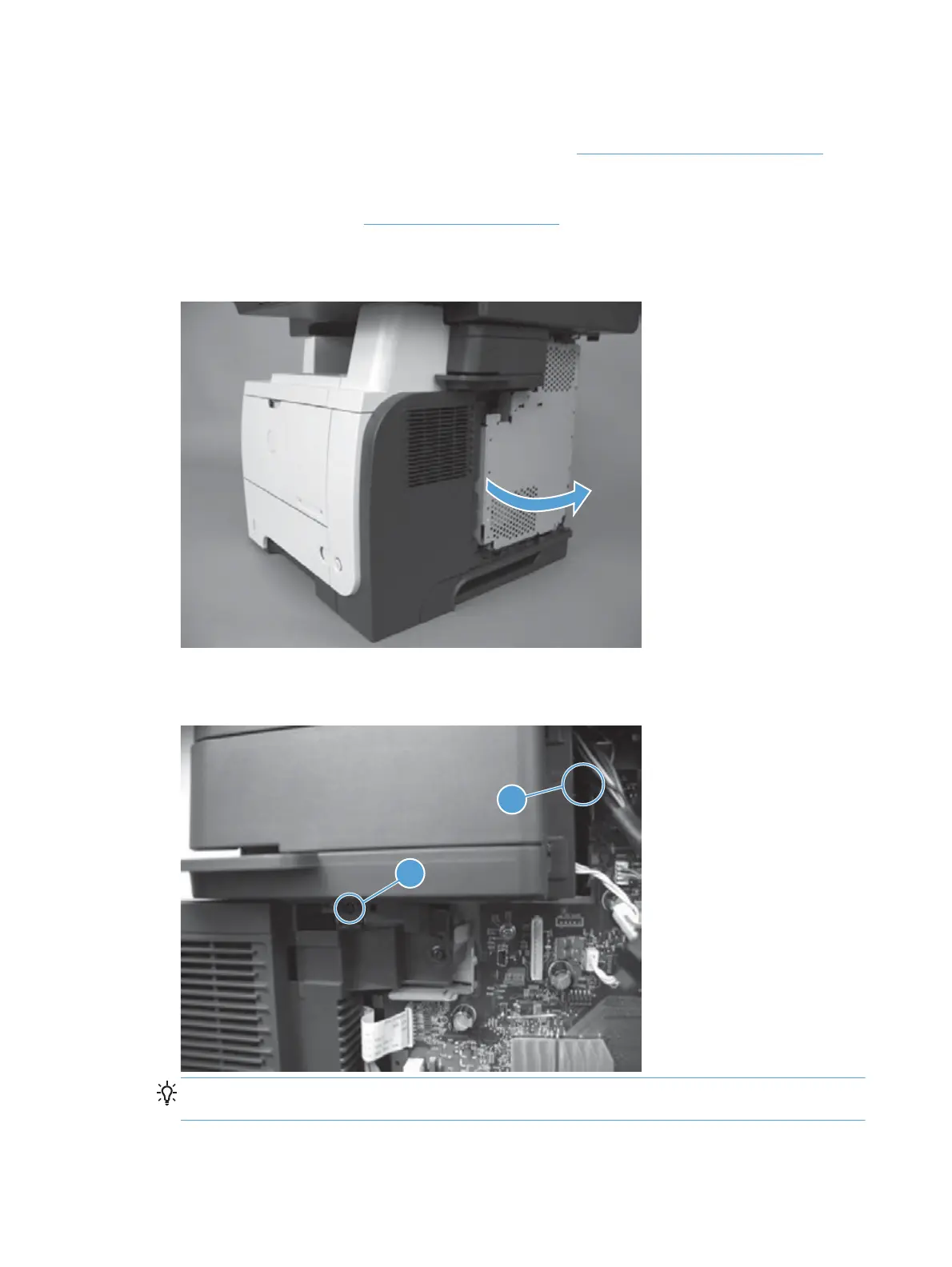

Figure 1-56 Remove the substitute cover (1 of 4)
3. Remove one screw (callout 1) and release one tab (callout 2).
Figure 1-57 Remove the stapler cover (2 of 4)
2
1
Reinstallation tip Disconnect the control-panel cable from the formatter to provide additional
access to the tab.
40 Chapter 1 Removal and replacement ENWW
