Location of connectors
DC controller connections

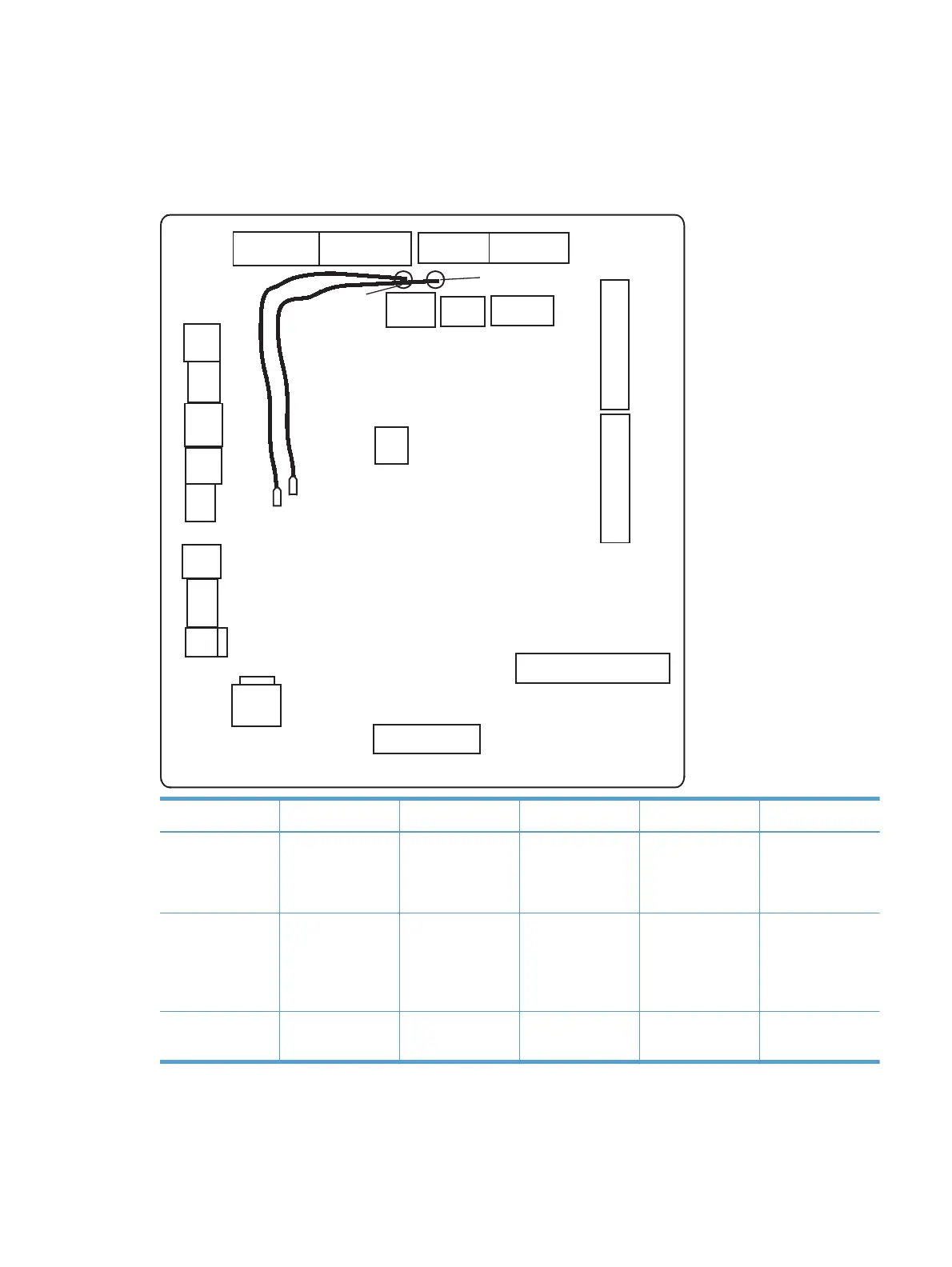

Figure 1-2 DC controller connections
J2400
J2311
J2301
J2302
J2310
J2105
J2307
J2304
J2702
J2201
J2200
FT1
FT2
J2100
J2700
J2701
J2703
J2704
J2308 J2401 J2303
J2306
J2103J2104 J2102
Item Description Item Description Item Description
J2100 Not used J2302 MPT media out
sensor (PS205)
J2400 Fuser output sensor
(PS2)
TH1/TH2
J2102 Fuser motor
(M8002)
J2303 Face-up sensor
(PS1)
Output bin full
sensor (PS4)
J2401
J2103 Main motor
(M8003)
J2304 Environmental
sensor (TH3)
J2700 LVPS
ENWW
Service approach
7
