Right handle cover and bracket
NOTE: You do not need to remove the sheet-metal bracket to remove the lower-right cover. However,
you must remove the bracket and the cover when removing some of the other product components in
this chapter. Use this procedure to remove the cover only, or the cover and the bracket.
1. Before proceeding, remove the following:
●
Formatter cover. See
Formatter cover on page 37.
●
Formatter PCA. See
Formatter PCA on page 38.
●
Stapler cover or substitute stapler cover. See
Stapler cover on page 40 or Substitute stapler
cover on page 42.
●
Stapler assembly. See
Stapler assembly on page 43.
●
Rear cover assembly. See
Rear cover assembly on page 44.
●
Left cover. See
Left cover on page 48.
●
Right-rear cover. See
Right-rear cover on page 50.
●
Tray 1 cover. See
Tray 1 cover on page 52.
●
Cartridge-door assembly. See
Cartridge-door assembly on page 54.
●
Right cover assembly. See
Right cover assembly on page 61.
2. To remove the cover and the bracket: Remove four screws.

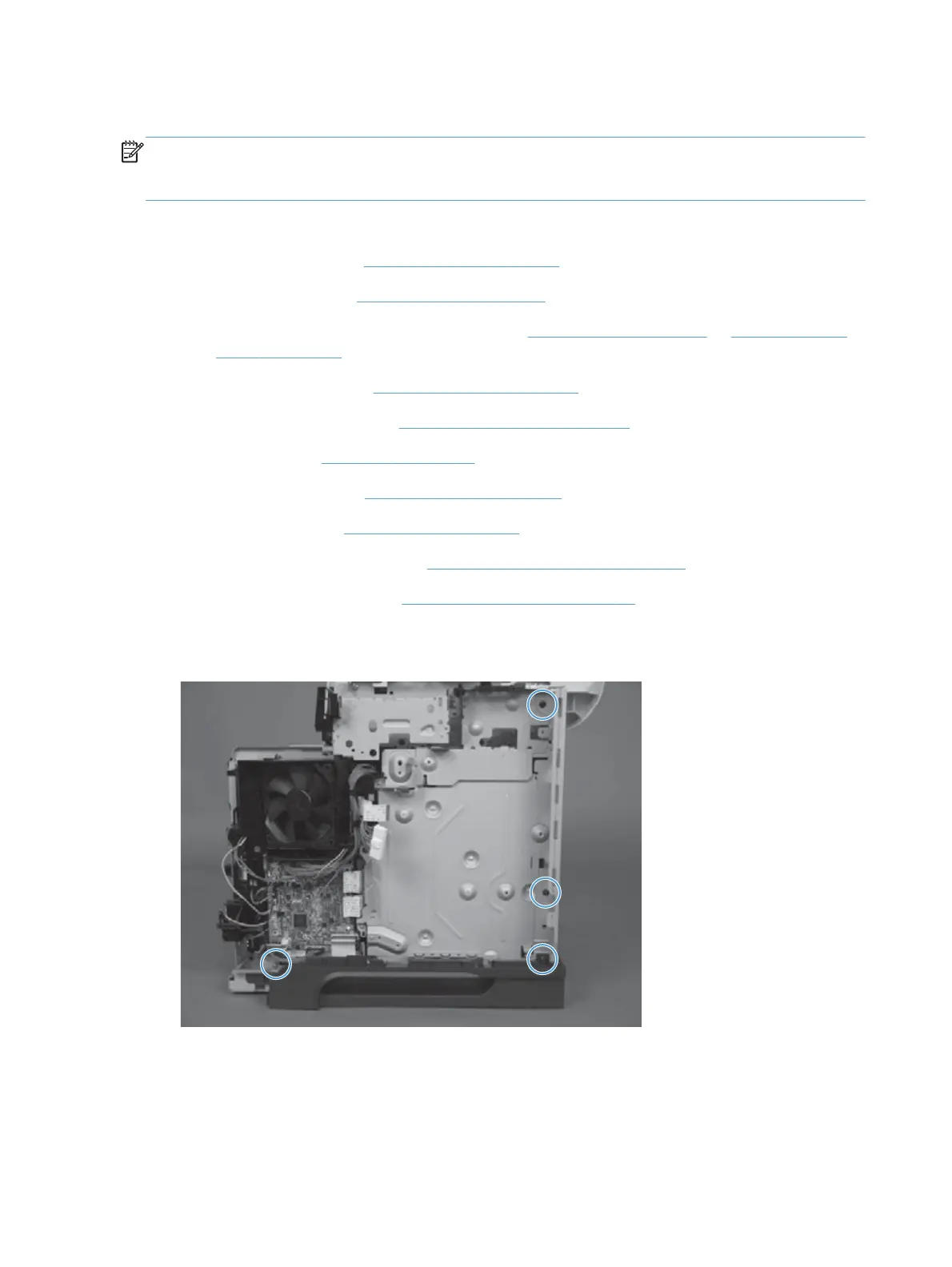

Figure 1-99 Remove the right handle cover and bracket (1 of 5)
