5. Slide the hard disk drive toward the edge of the formatter and remove.

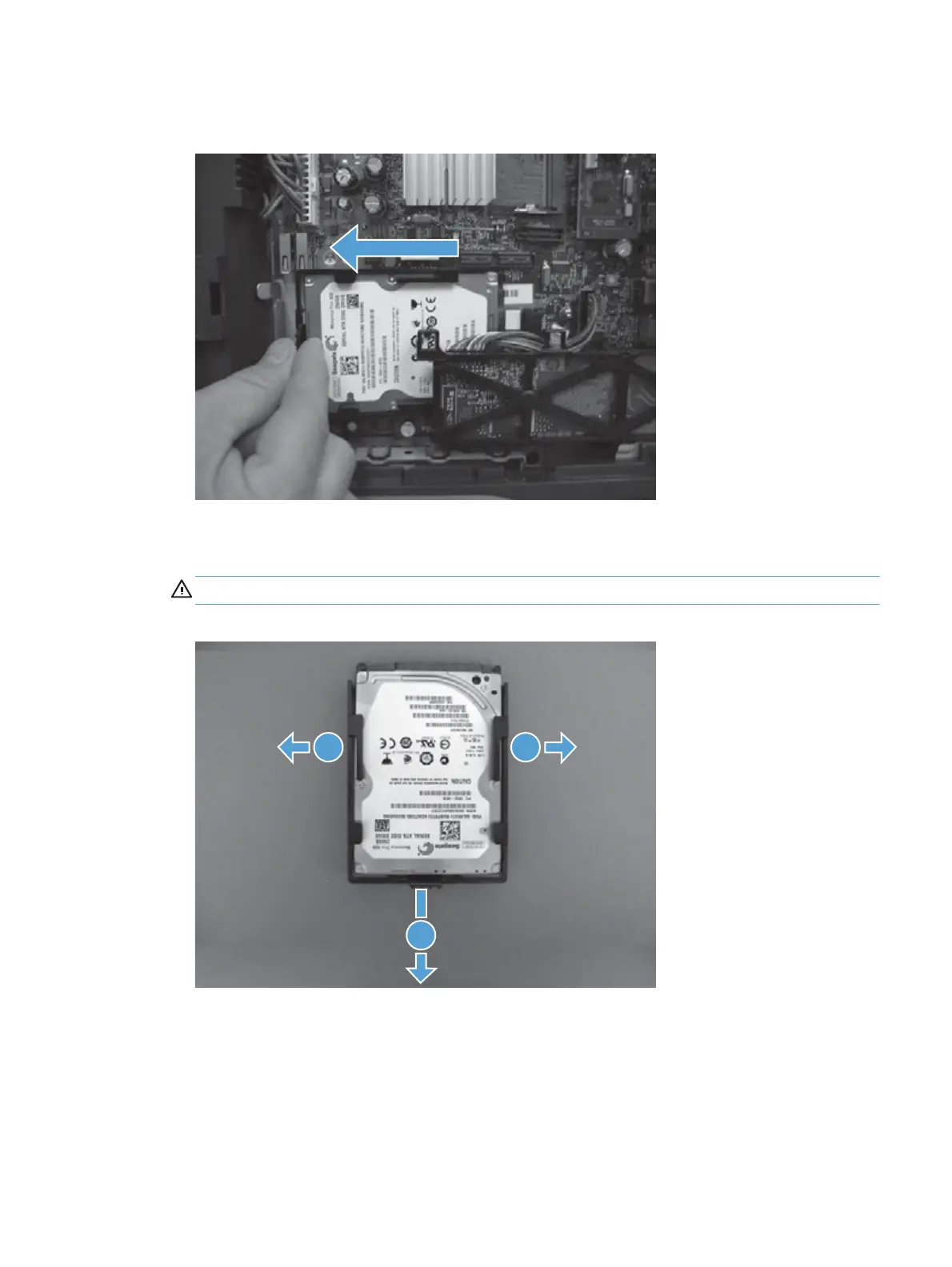

Figure 1-45 Remove the HDD (4 of 5)
6. Carefully separate the plastic side rails one at a time (callout 1) from the hard drive, and then
slide the plastic cover (callout 2) from the hard drive.
CAUTION: The plastic rails can be tight fitting. Remove carefully to avoid breaking.
Figure 1-46 Remove the HDD (5 of 5)
1 1
2
ENWW
Removal and replacement procedures
33
