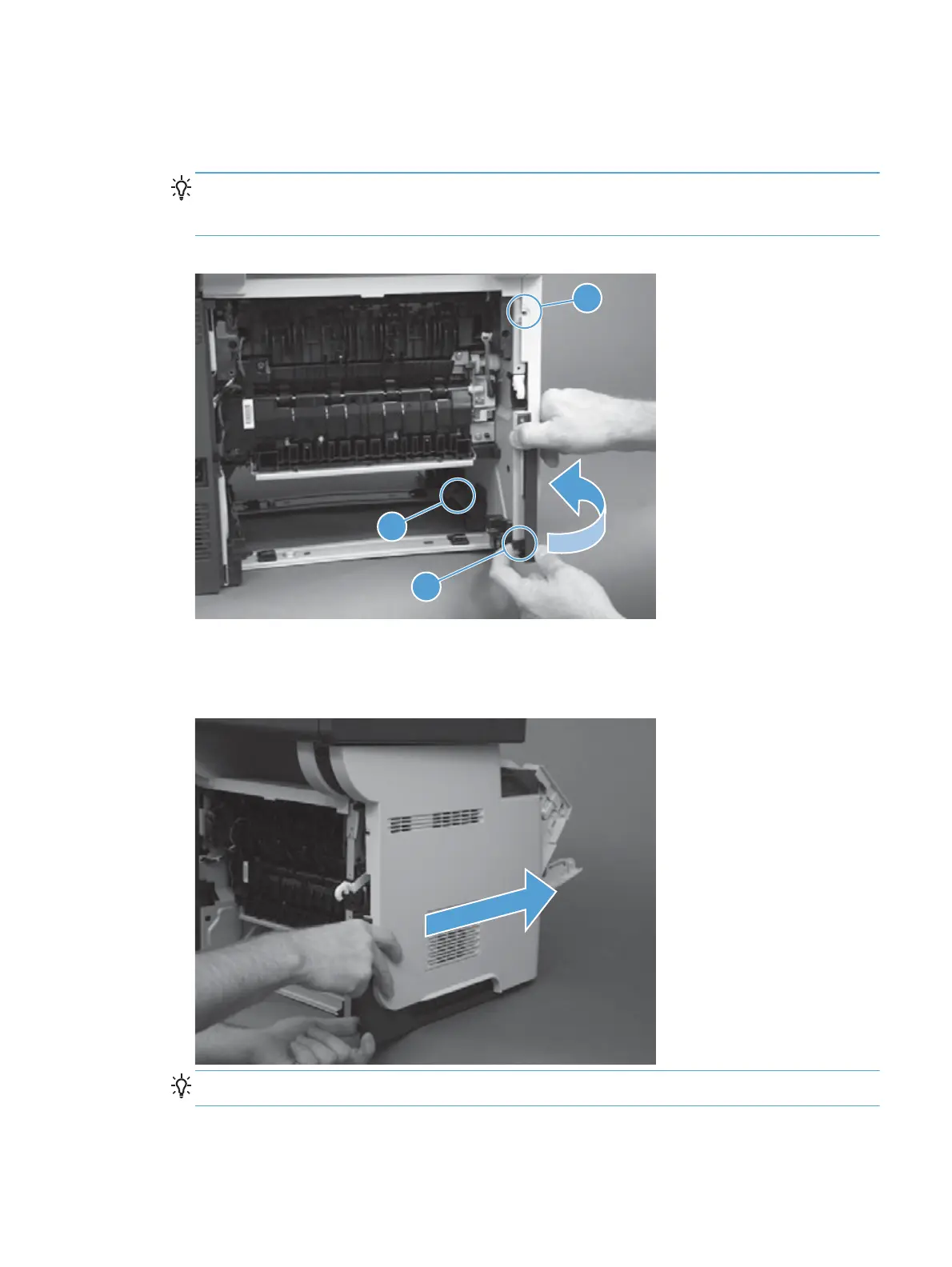

3. Grip the cover and pull it away from the engine. Release the first tab (callout 1), and then release
the second tab (callout 2). Release the third tab (callout 3) if necessary to separate the cover from
the engine.
TIP: The tab inside the tray cavity (callout 2) is located below the plastic tray rail. It might be
easier to slightly lift up the left side of the product, and use a small flat blade screwdriver to
release this tab.
Figure 1-72 Remove the left cover (2 of 4)
1
2
3
4. Rotate the rear of the cover slightly away from the product, and then slide the cover toward the
front of the product to remove it.
Figure 1-73 Remove the left cover (2 of 4)
Reinstallation tip Align the tabs on the front of the cover first and then reinstall the cover.
ENWW
Removal and replacement procedures
49
