3. Lower the ADF pickup roller.

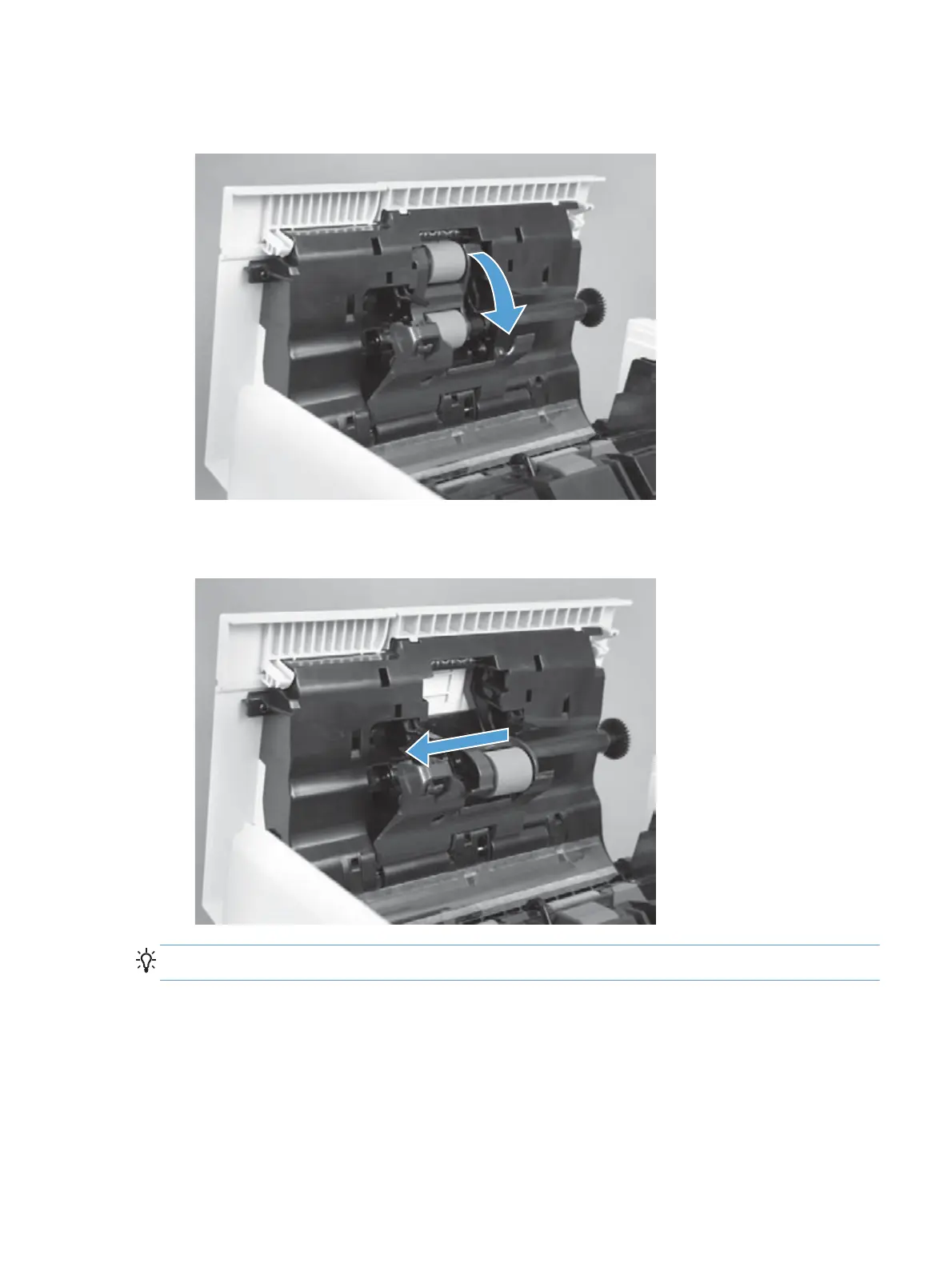

Figure 1-30 Remove the ADF pickup roller (3 of 4)
4. Slide the roller toward the front of the product to remove.
Figure 1-31 Remove the ADF pickup roller (4 of 4)
Reinstallation tip Make sure the roller is seated correctly. The roller is keyed.
