HP M525

5. Slide the assembly away from the other hinge pin to release it.

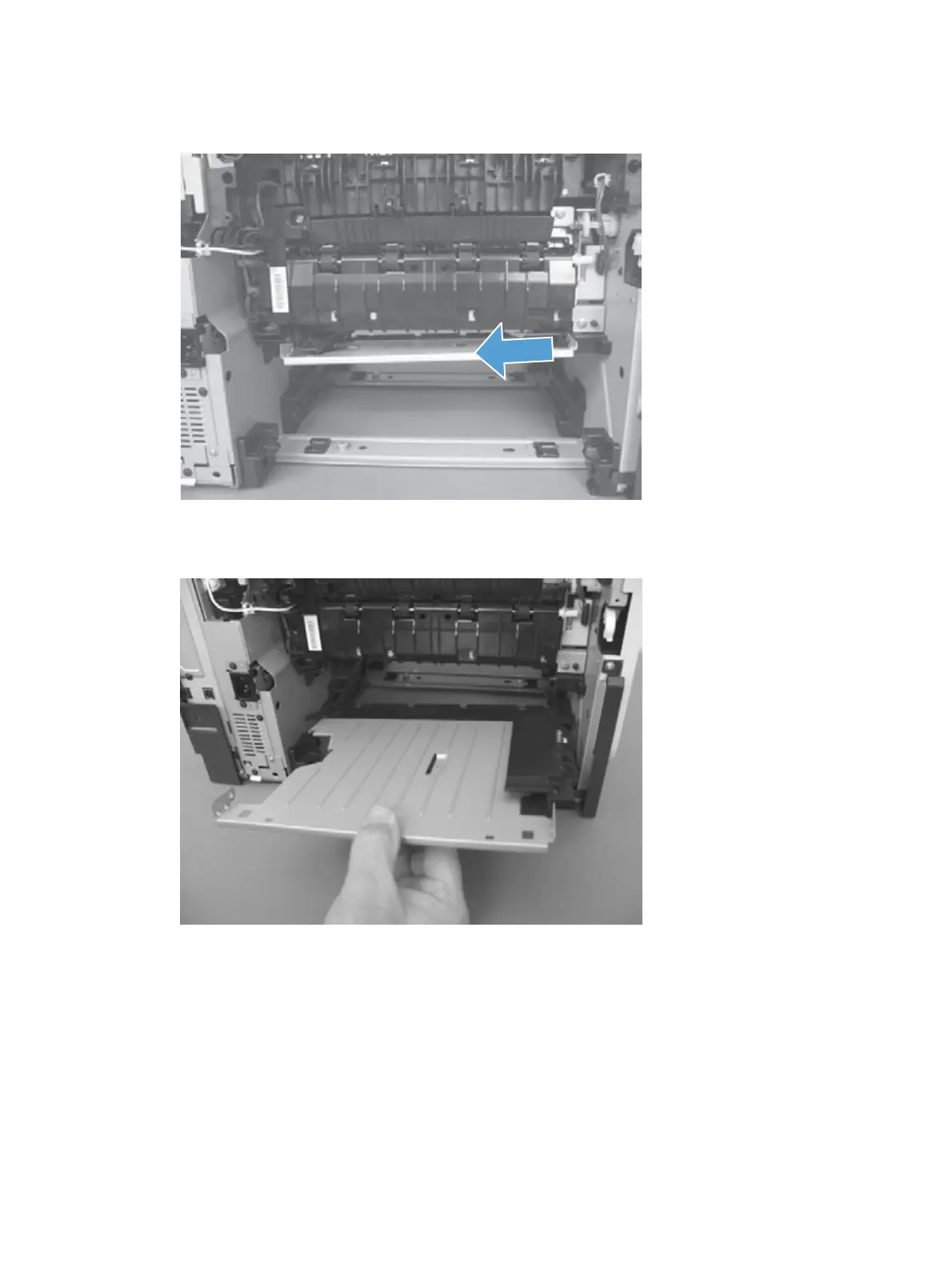

Figure 1-165 Remove the duplex media-feed assembly (4 of 5)
6. Pull the duplex media-feed assembly out of the back of the product.
Figure 1-166 Remove the duplex media-feed assembly (5 of 5)
110 Chapter 1 Removal and replacement ENWW
