HP M525

5. Slide cover toward the front of the product (callout 1) and then lift the front of the cover (callout 2)
to remove.

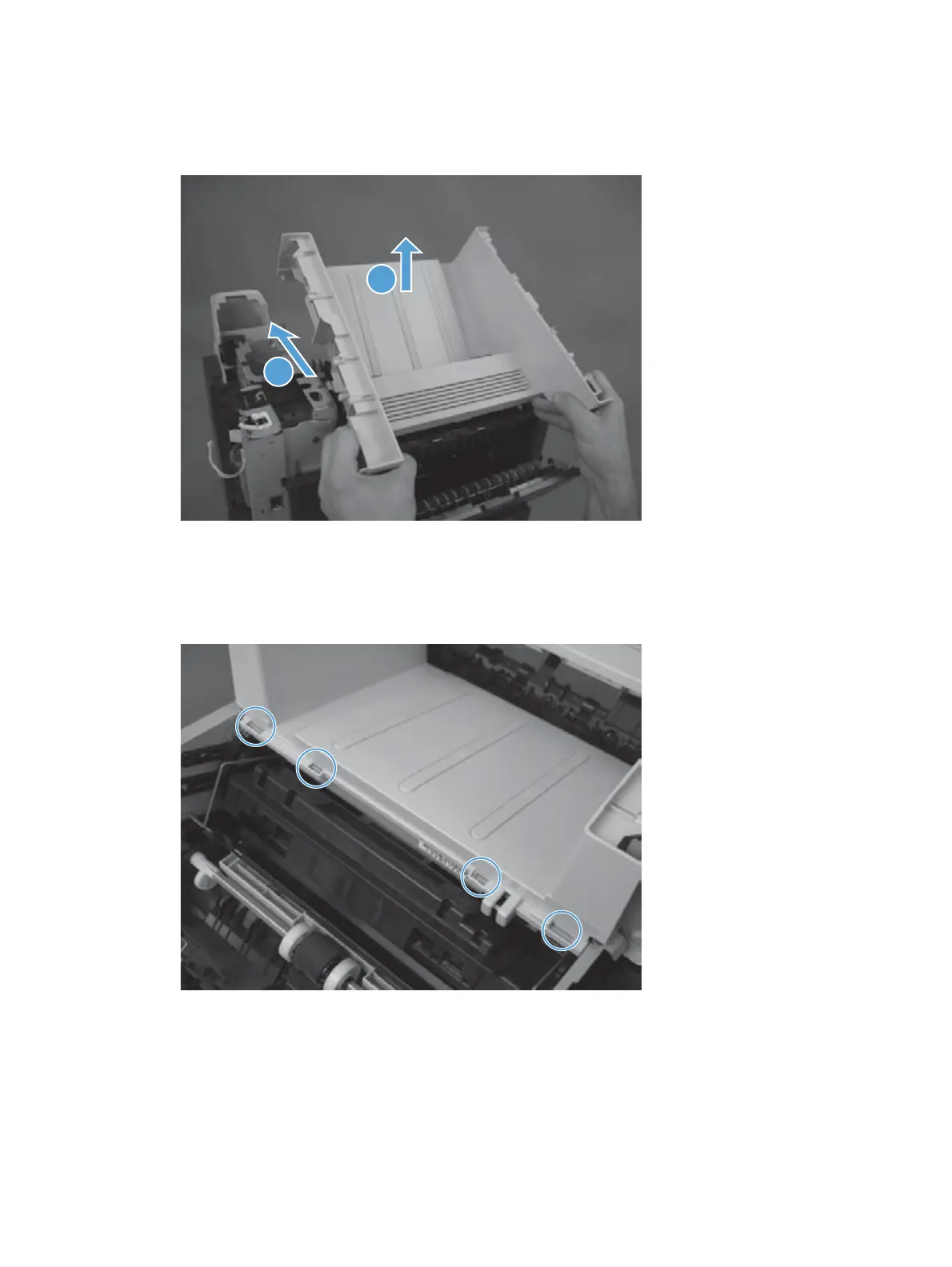

Figure 1-182 Remove the top cover (4 of 4)
1
2
Reinstall the top cover
▲
Make sure the tabs on the chassis are correctly inserted into the slots on the cover.
Figure 1-183 Reinstall the top cover
122 Chapter 1 Removal and replacement ENWW
