HP M525

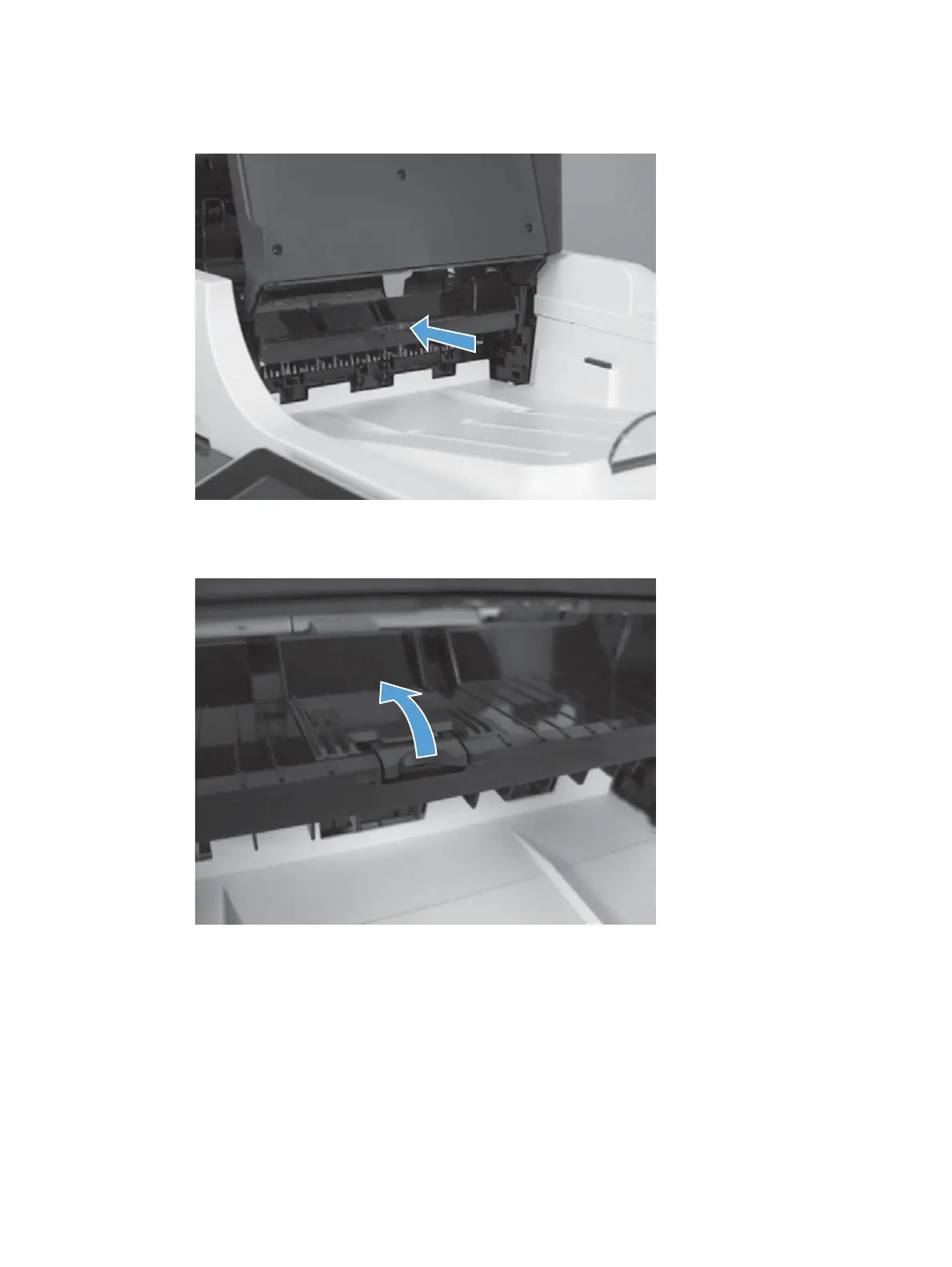

3. Push in on the latch to release the separation pad.
Figure 1-34 Remove the ADF separation pad (3 of 5)
4. Lower the ADF tray, and then lift the separation pad.
Figure 1-35 Remove the ADF separation pad (4 of 5)
