3.

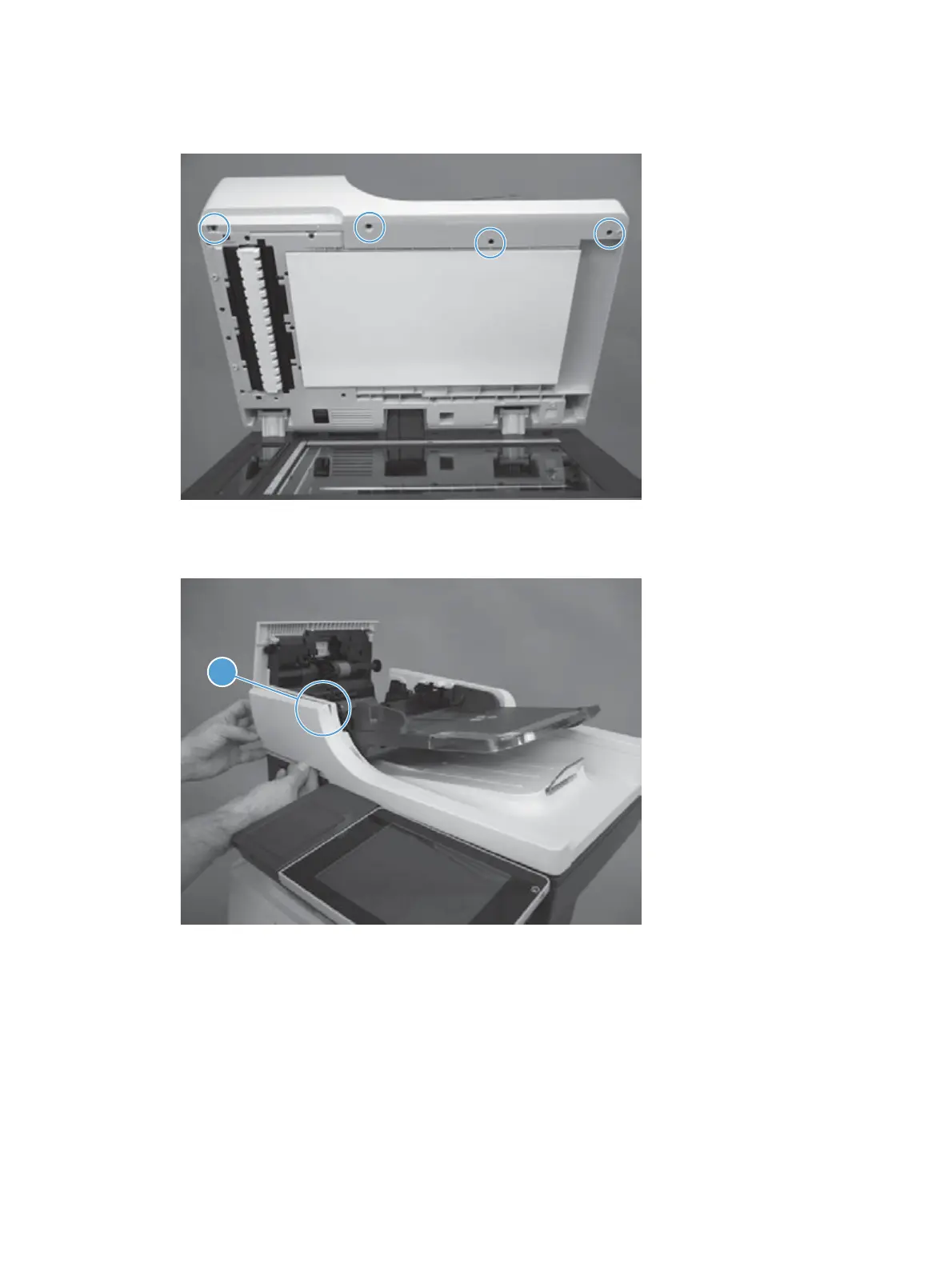

Open the ADF, and then remove four screws.
Figure 1-86
Remove the ADF front cover (3 of 4)
4.
Release one tab, and then remove the cover.
Figure 1-87
Remove the ADF front cover (4 of 4)
1
58
Chapter 1 Removal and replacement
ENWW
