100 HP ProLiant ML370 Generation 4 Server Reference and Troubleshooting Guide
Array Controller SCSI Cabling with Optional Internal Two-Bay Hot-Plug SCSI
Drive Cage (on page 105
)
Integrated simplex SCSI cabling

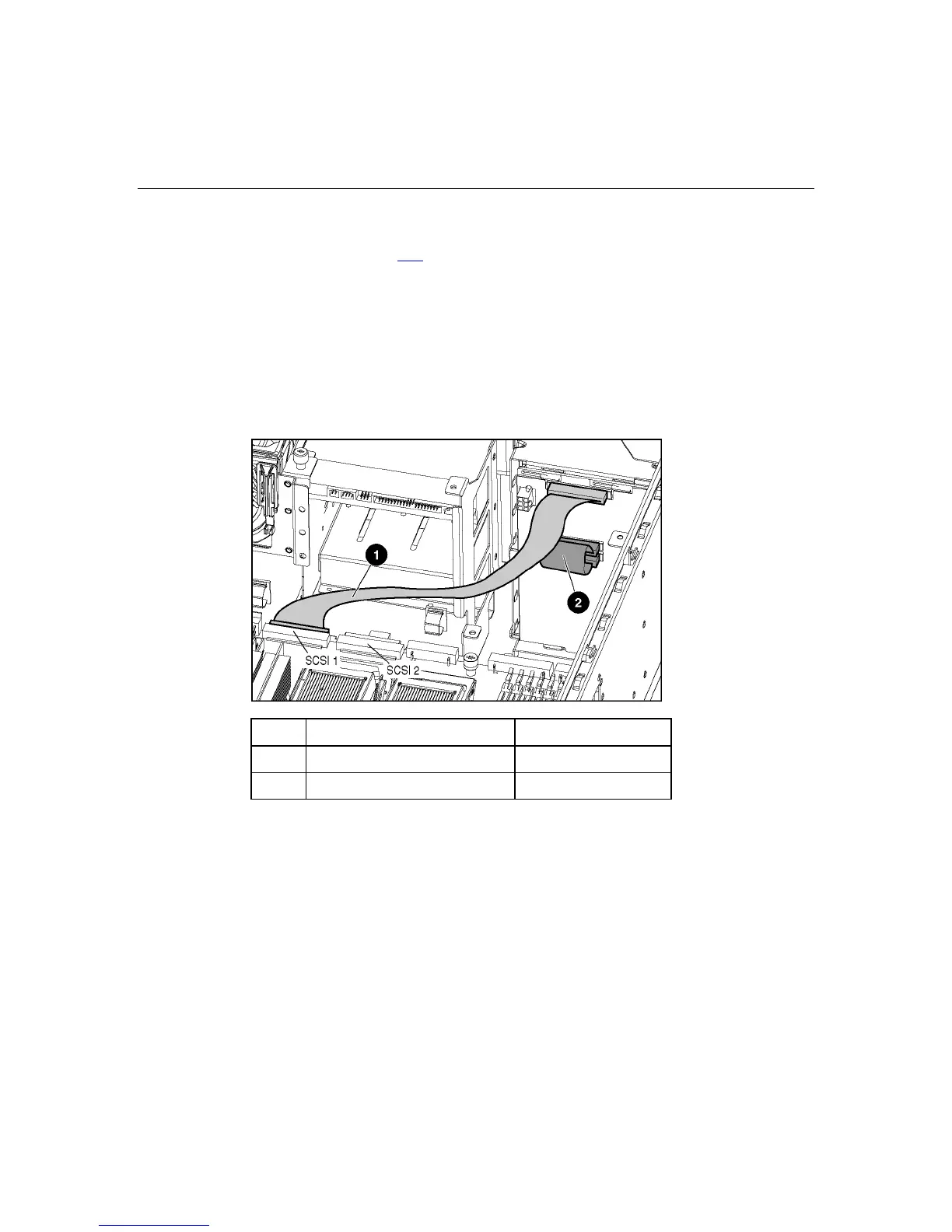

In the integrated simplex cabling configuration, which is the standard shipping
configuration, the integrated SCSI controller controls up to six hard drives
through one SCSI port.
NOTE: The cables shown ship standard with the server.
Item Component description SCSI IDs managed
1 SCSI cable (SCSI 1) 0, 1, 2, 3, 4, 5
2 simplex SCSI cable N/A
IMPORTANT: After changing any SCSI configuration, be sure the
proper boot controller order is set in RBSU.
