86 HP ProLiant ML370 Generation 4 Server Reference and Troubleshooting Guide

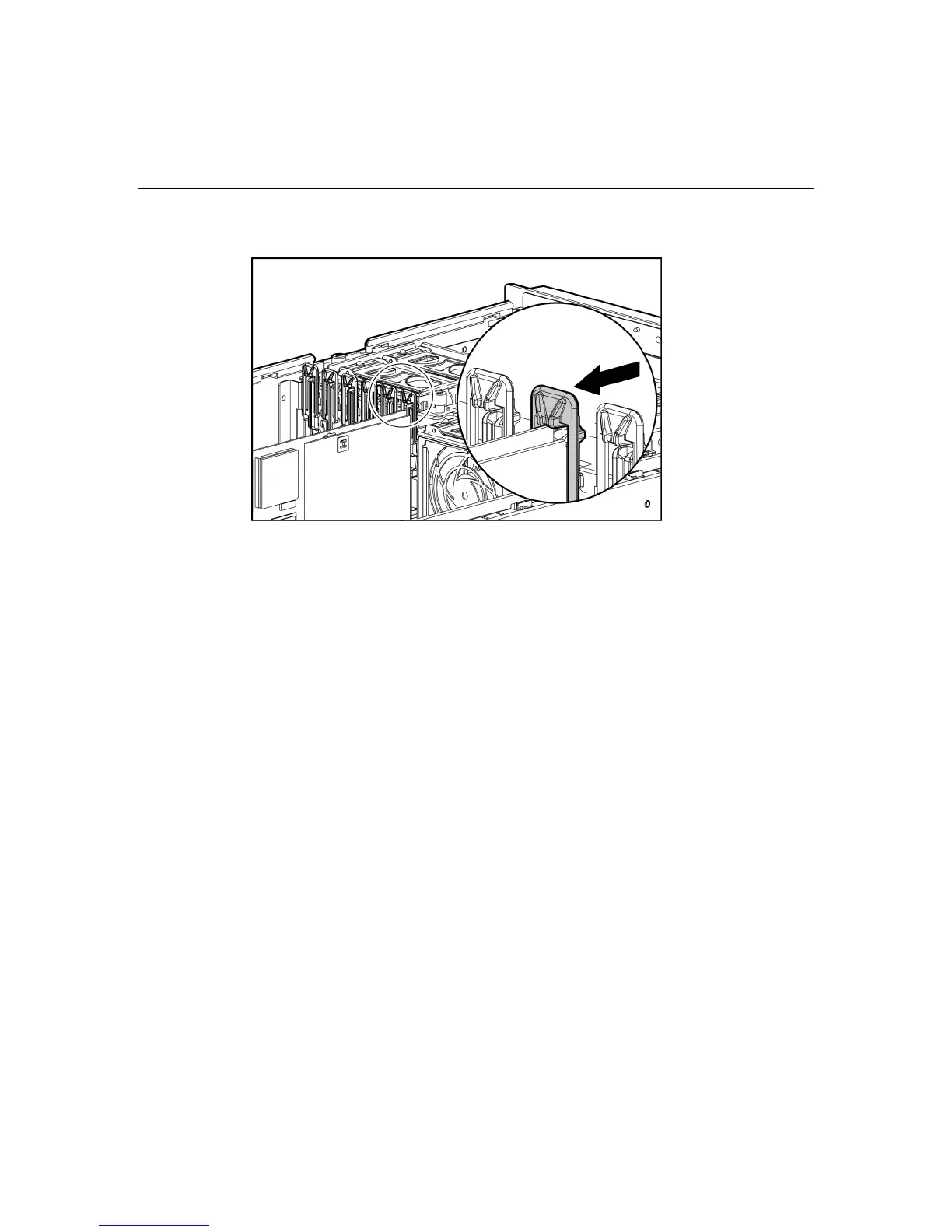

4. Lock the retaining clip.
5. Connect any required internal or external cables to the expansion board.
Refer to the documentation that ships with the expansion board.
Remote Insight Lights-Out Edition II board
The server comes with iLO remote management capability embedded on the
system board. The 30-pin remote management connector for the RILOE II board
is provided to reduce external cabling. The 30-pin connector provides power,
keyboard, mouse, and other peripheral signals directly to the system board;
therefore, the external AC power adapter and keyboard/mouse loopback cable are
not needed for normal operations.
The RILOE II board provides remote server manageability for ProLiant servers.
It can be accessed from a network client using a standard web browser and it
provides a keyboard, mouse, and video capability for a host server, regardless of
the state of the host operating system or host server. The RILOE II board features
include a faster processor for increased performance, new user interface for
easier browsing, integration with LDAP, Virtual Floppy, and Virtual CD for
increased server manageability.
