Hardware options installation 89
Duplex SCSI board option
The server supports an optional duplex SCSI board supplied with the Duplex
SCSI Backplane Option Kit. The duplex SCSI board allows four hard drives to
be supported on one SCSI bus, and two hard drives to be supported on the other
SCSI bus. For cabling information, refer to "Server Cabling (on page 99)."
To prepare the server before installing or removing options:
1. Power down the server ("Powering down the server" on page 27
).
2. Extend or remove the server from the rack ("Extending the server from the
rack" on page 28
).
3. Remove the front bezel door, if necessary.
4. Remove the access panel ("Removing the access panel" on page 30
).

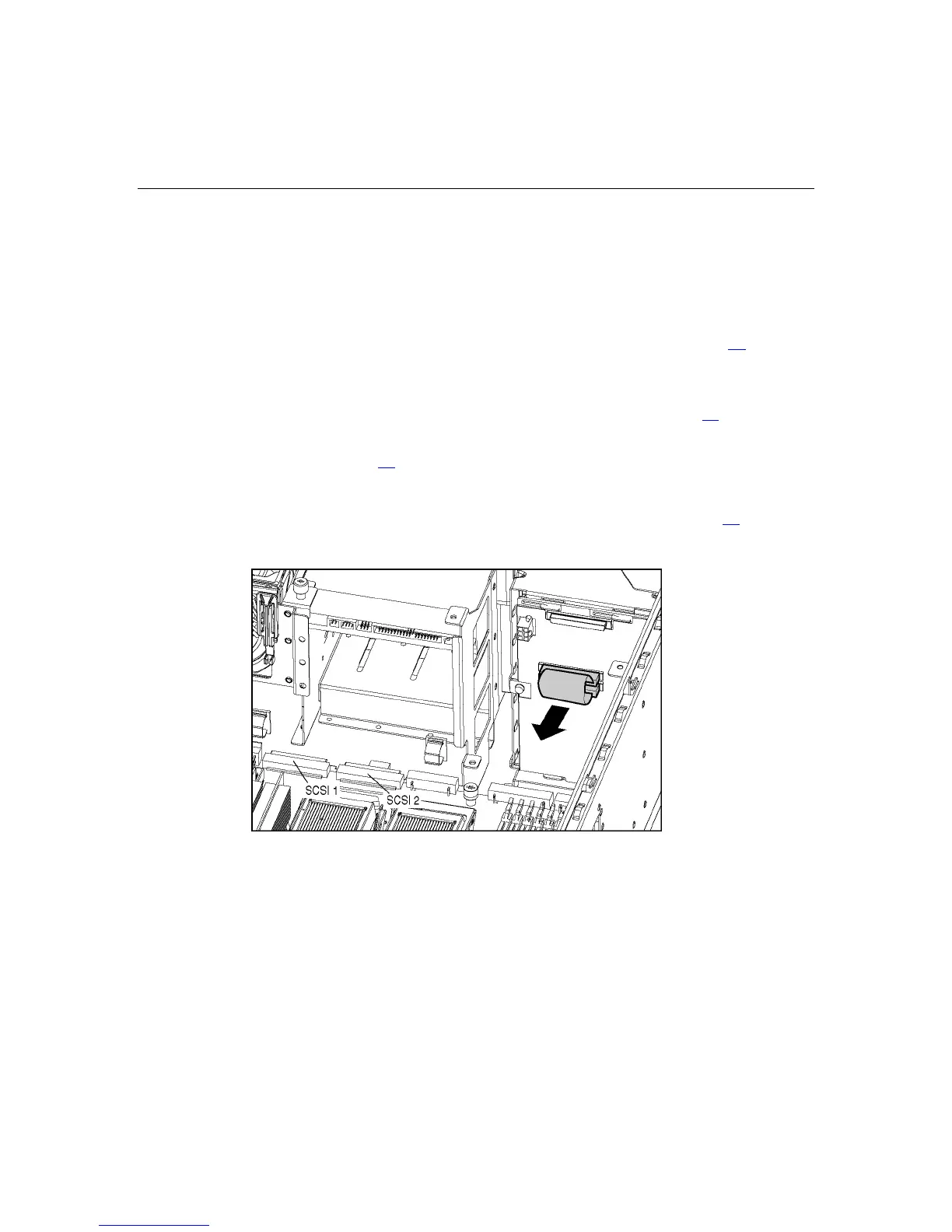

5. Remove the SCSI simplex cable.
