Server cabling 105
Array controller SCSI cabling with optional internal two-bay hot-
plug SCSI drive cage

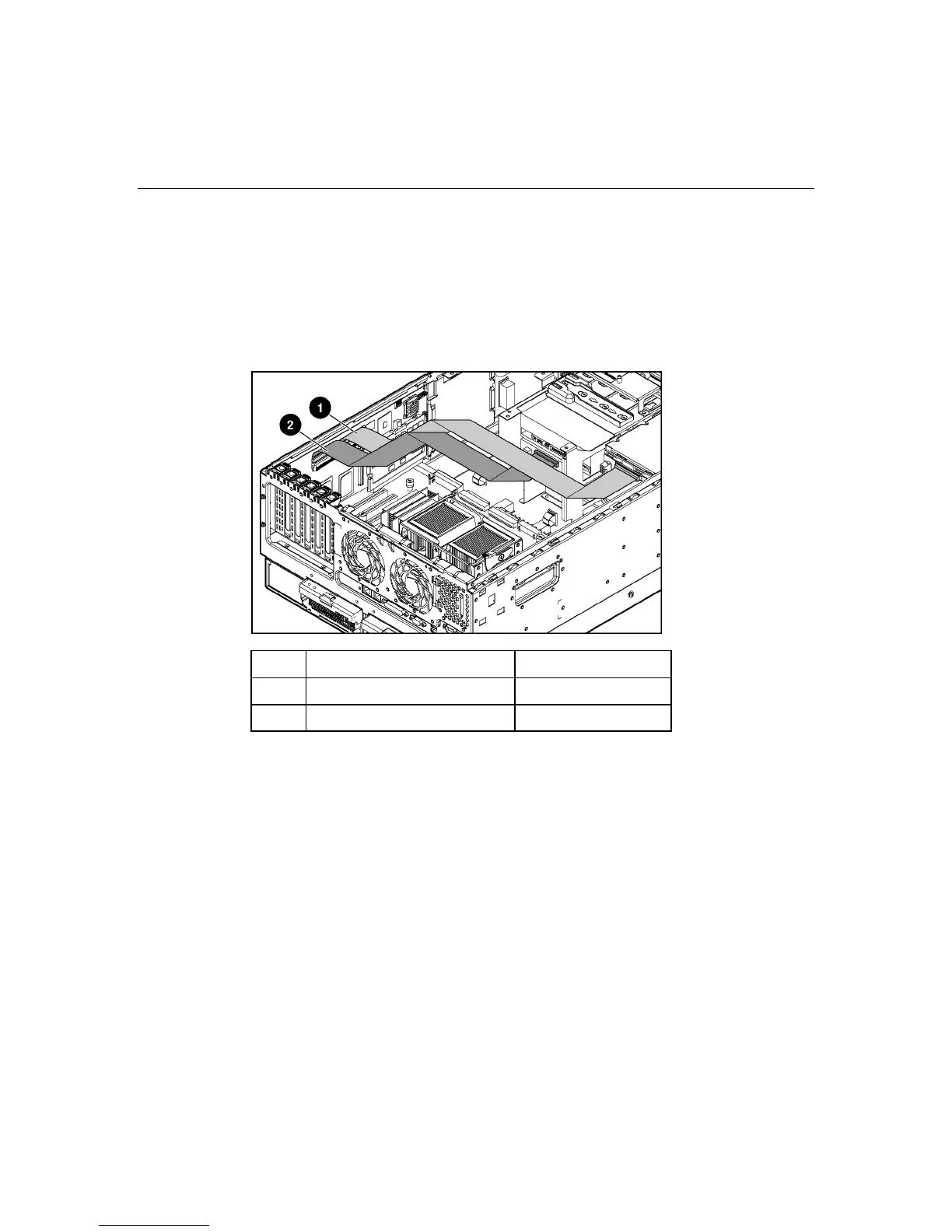

When cabling an optional internal two-bay hot-plug SCSI drive cage with the
integrated drive cage, the optional PCI Array Controller controls up to two hard
drives on one SCSI bus and up to six hard drives on the other SCSI bus.
Item Component description SCSI IDs managed
1 SCSI cable * 0, 1, 2, 3, 4, 5
2 SCSI cable ** 0, 1
* One SCSI cable is provided with the server.
** One SCSI cable is provided with the Internal Two-Bay Hot-Plug SCSI
Drive Cage.
