Server cabling 101
Integrated duplex SCSI cabling
In the optional integrated duplex cabling configuration, the integrated controller
controls up to six hard drives through two SCSI ports: one with up to two drives,
and the other with up to four drives.
NOTE: The Duplex SCSI Backplane Option Kit is required for duplex
cabling configurations. The kit contains a duplex SCSI cable and a
duplex SCSI board.

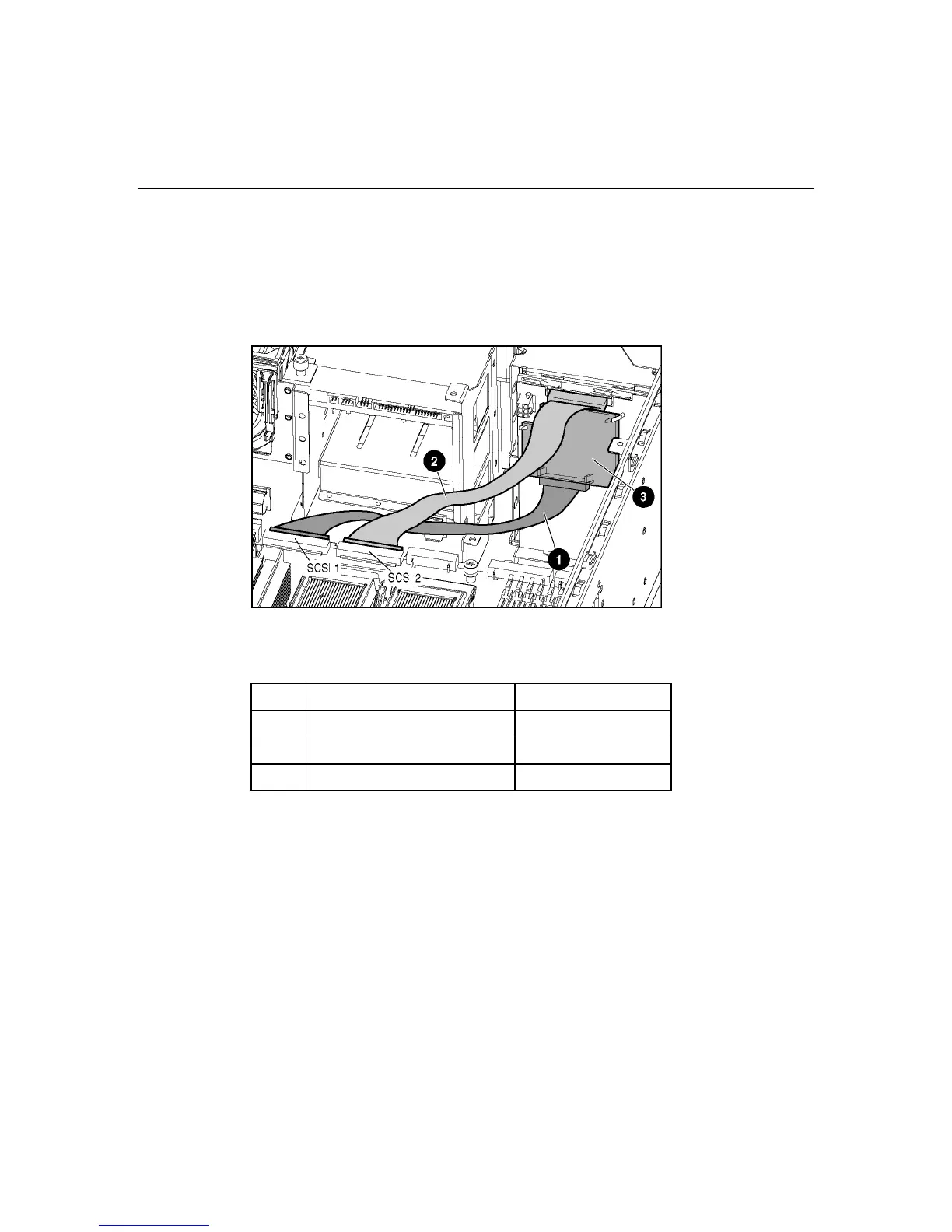

Item Component description SCSI IDs managed
1 SCSI cable (SCSI 1) 0, 1, 2, 3
2 SCSI cable (SCSI 2) * 4, 5
3 Duplex SCSI board N/A
* One SCSI cable is provided with the server.
