102 HP ProLiant ML370 Generation 4 Server Reference and Troubleshooting Guide
Array controller simplex SCSI cabling

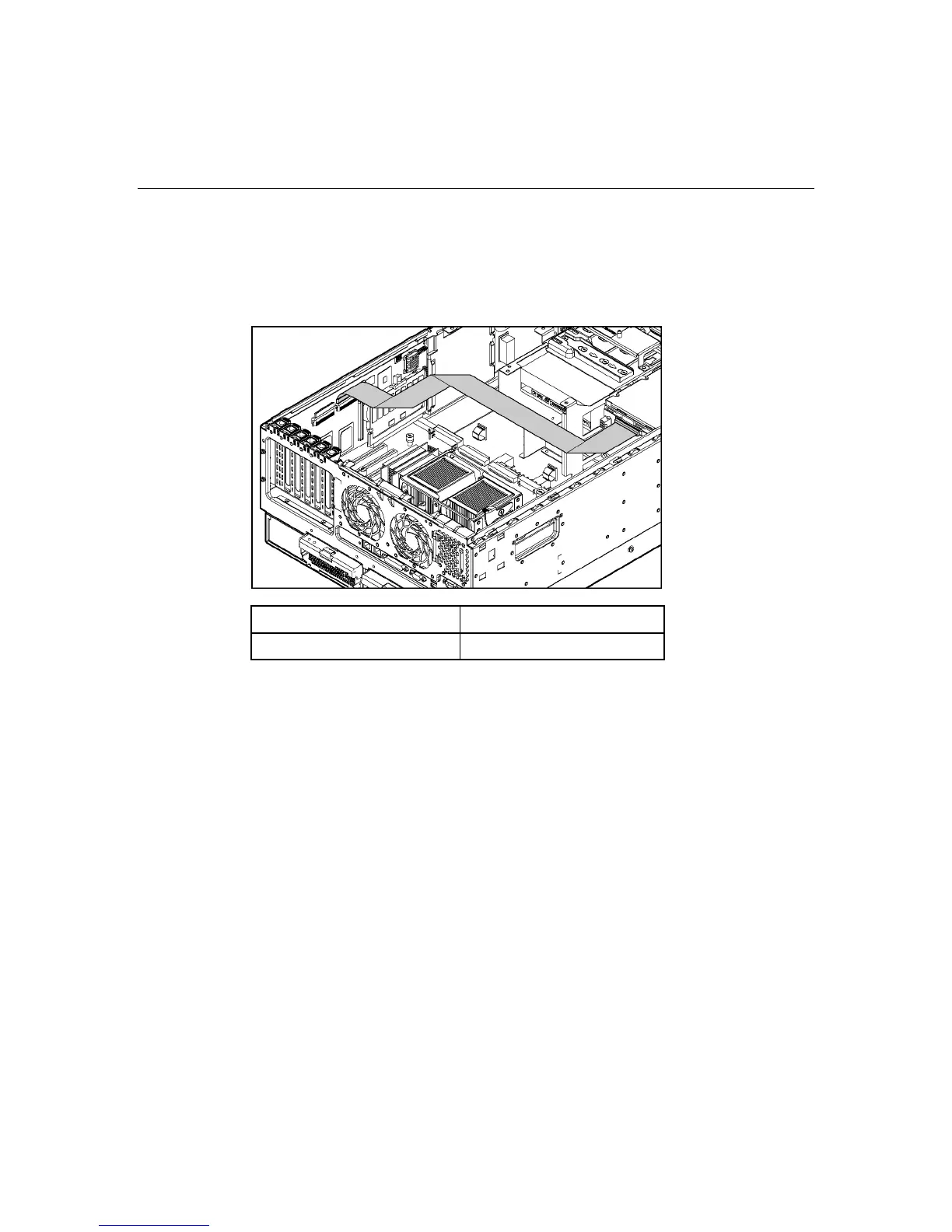

In the array controller simplex SCSI cabling configuration, an optional PCI array
controller controls up to six hard drives through one SCSI bus.
Component description SCSI IDs managed
SCSI cable * 0, 1, 2, 3, 4, 5
* One SCSI cable is provided with the server.
Array controller duplex SCSI cabling
NOTE: The Duplex SCSI Backplane Option Kit is required for duplex
cabling configurations. The kit contains a duplex SCSI cable and a
duplex SCSI board.
