Hardware options installation 65

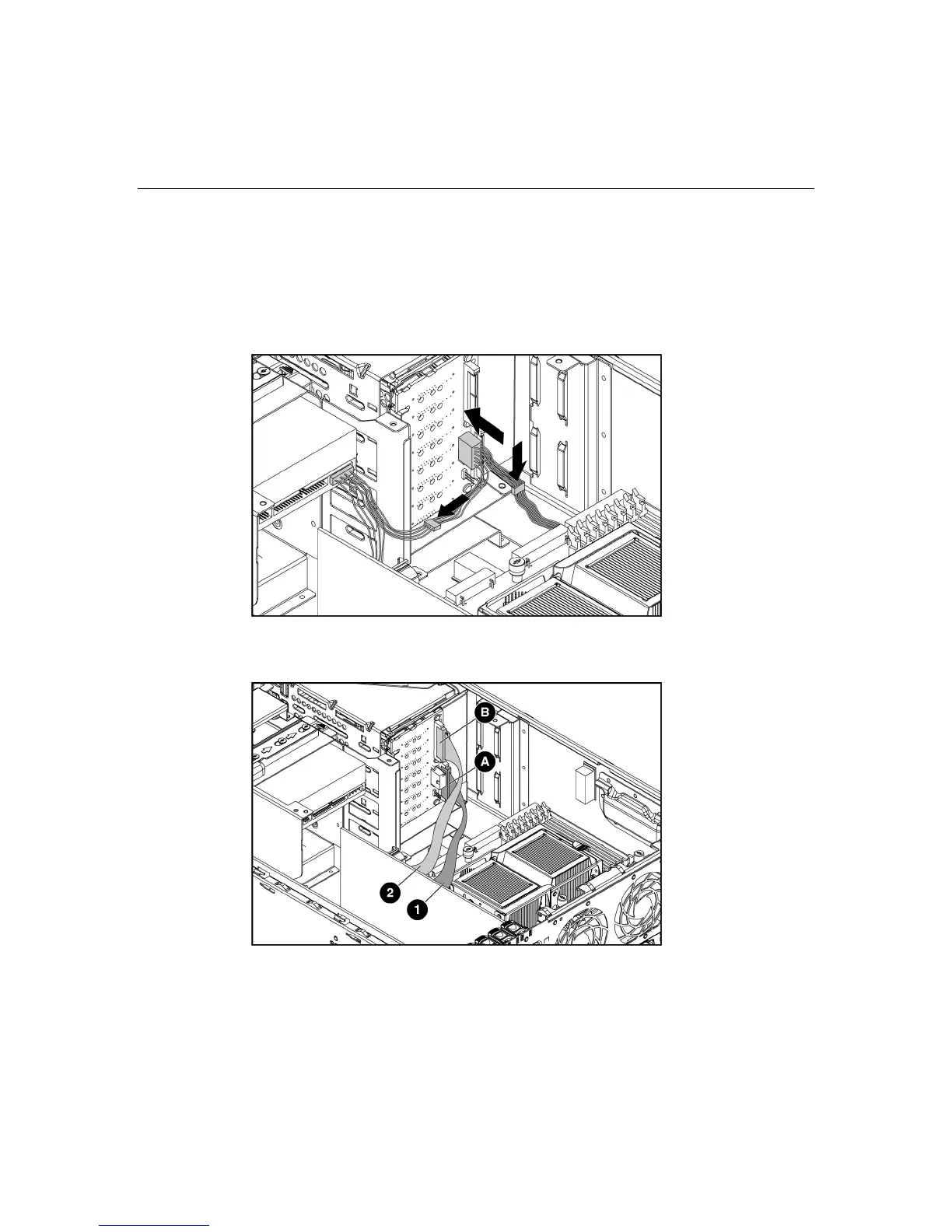

− Connect the 8-pin connector to the 8-pin power cable previously
disconnected from the SCSI drive cage.
− Connect the 4-pin connector to an unused 4-pin media bay power
connector.
NOTE: The center wall is removed for illustration purposes only.
5. Route the SAS-SATA cables through the center wall and connect them to the
drive cage backplane.
6. Slide the drive cage fully into the bay and insert the four screws to secure the
drive cage to the chassis.
