74 HP ProLiant ML370 Generation 4 Server Reference and Troubleshooting Guide

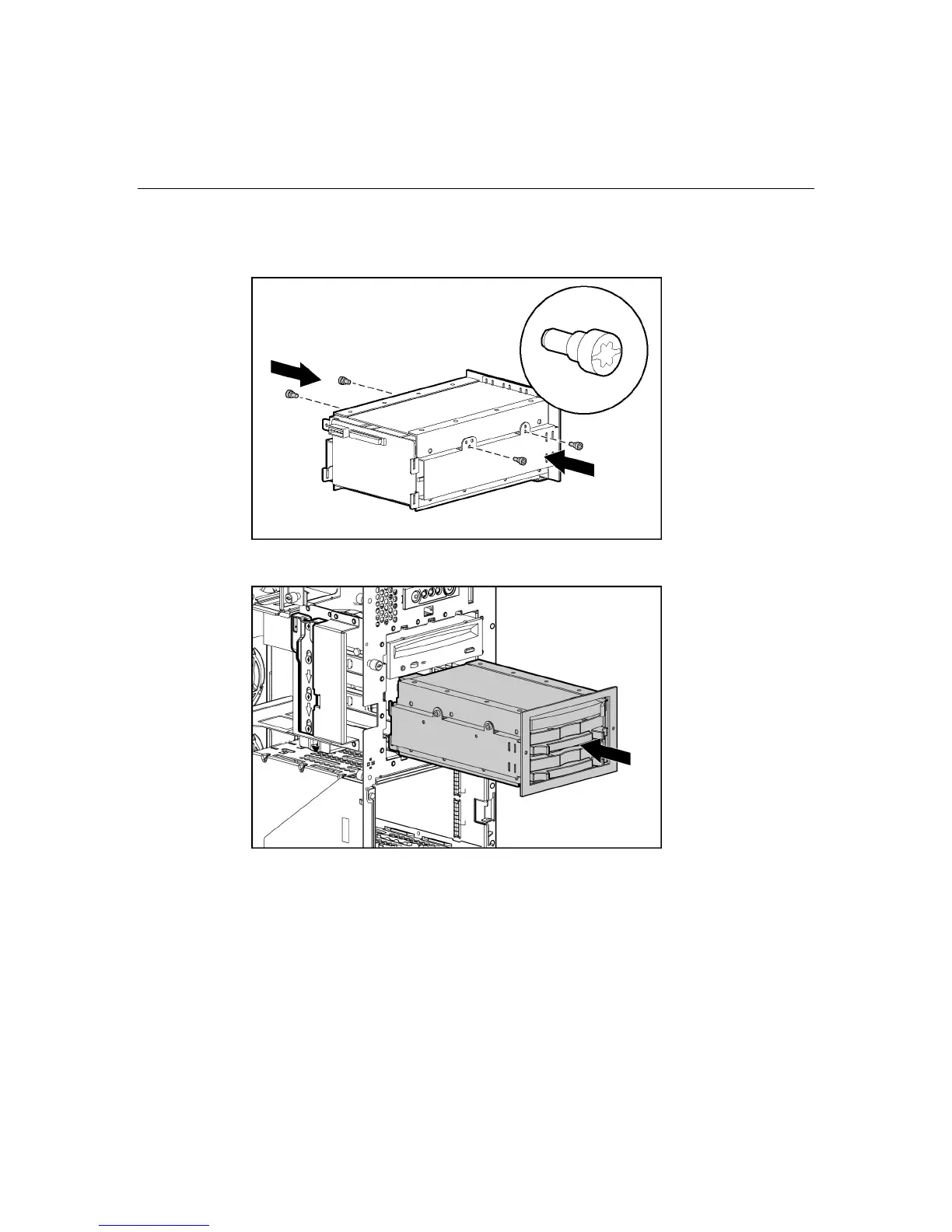

6. Using the T-15 Torx screwdriver attached to the back of the server, position

two screws in the upper mounting holes on each side of the drive cage.

7. Slide the drive cage part of the way into the bay.

IMPORTANT: Be sure that the unit identification numbers (0 and 1)

appear on the right side of the drive cage front panel.

Questions and Answers:

Need help?

Do you have a question about the HP ProLiant ML370 Generation 4 and is the answer not in the manual?

HP ProLiant ML370 Generation 4 Specifications

General

Processor	Intel Xeon
Processor Socket	Socket 604
Chipset	Intel E7520
Memory Slots	8 DIMM slots
RAID Support	RAID 0, 1, 5
Form Factor	Tower
Storage	SATA
Expansion Slots	6 PCI-X slots
Power Supply	Redundant power supply optional
Operating System Support	Linux
Drive Bays	Up to 8 hot-plug drive bays
