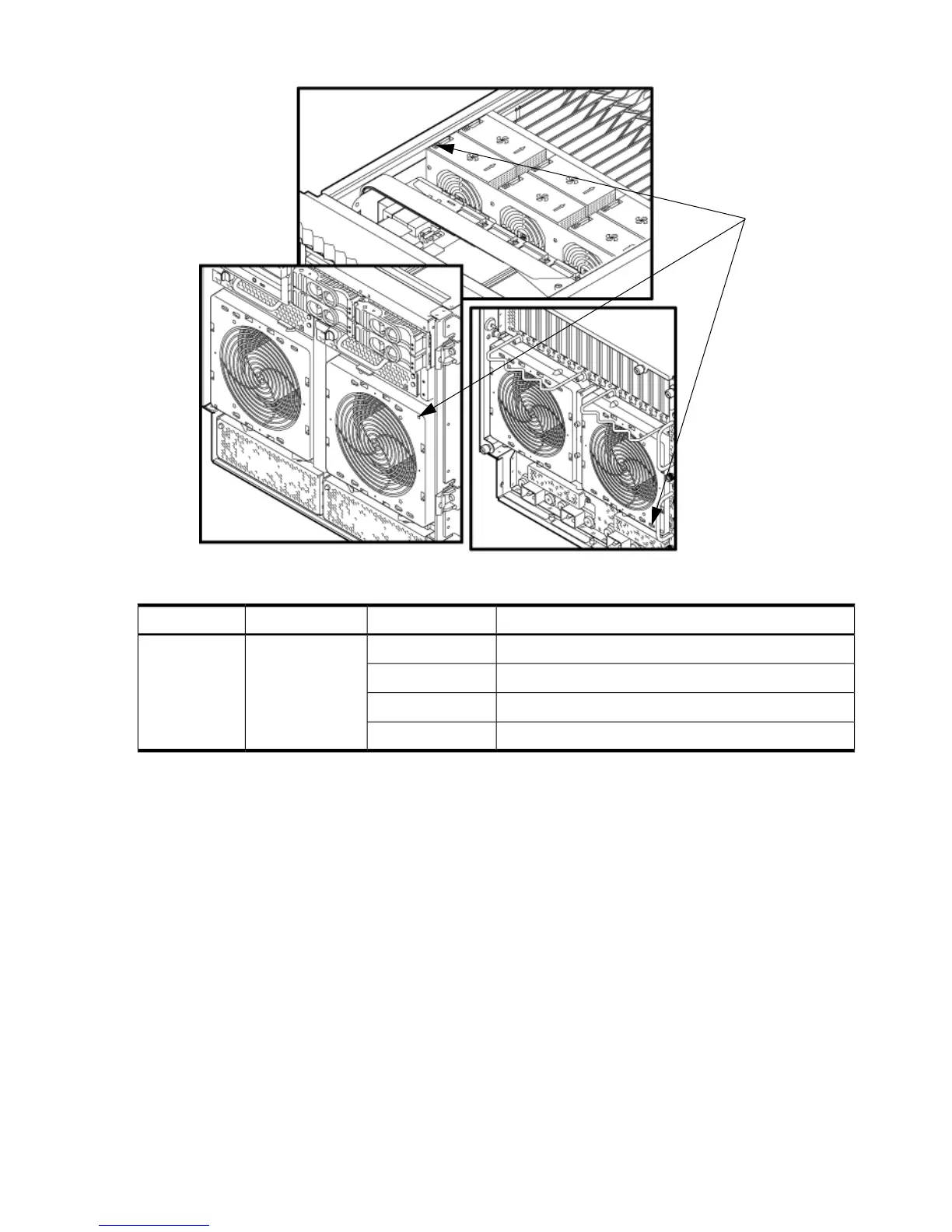

Table 5-4 System and PCI I/O Fan LEDs
DescriptionStateDriven ByLED
NormalOn GreenFanFan Status
Predictive failureFlash Yellow
FailedFlash Red
No powerOff
OL* LEDs
Cell Board LEDs
There is one green power LED located next to each ejector on the cell board in the server that
indicates the power is good. When the LED is illuminated green, power is being supplied to the
cell board and it is unsafe to remove the cell board from the server.
There is one yellow attention LED located next to each ejector lever on the cell board in the server.
When the LED is flashing yellow, it is safe to remove the cell board from the server.
126 Server Troubleshooting
