17. Wheel kit installation is complete when both caster covers are attached to the server, and
the front bezel and all covers are installed.

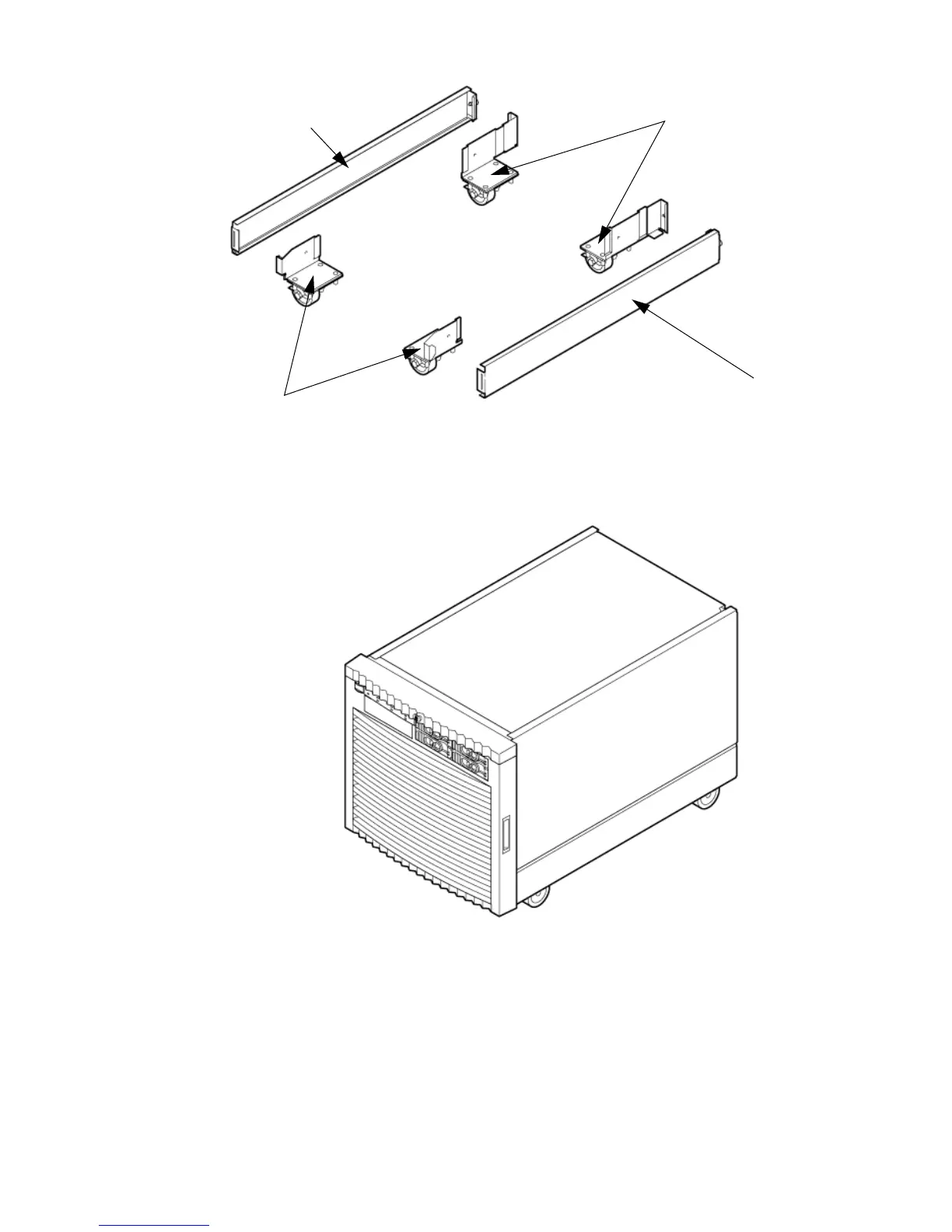

Figure 3-16 Completed Server
Installing the Power Distribution Unit
The server may ship with a power distribution unit (PDU). Two 60 A PDUs available for the
server. Each PDU 3 U high and is mounted horizontally between the rear columns of the server
cabinet. The 60 A PDUs are delivered with an IEC-309 60 A plug.
The 60 A NEMA
2
PDU has four 20 A circuit breakers and is constructed for North American
use. Each of the four circuit breakers has two IEC
3
-320 C19 outlets providing a total of eight
IEC-320 C19 outlets.
2. The acronym NEMA stands for National Electrical Manufacturers Association.
3. The acronym IEC stands for International Electrotechnical Commission.
Installing the Power Distribution Unit 57
