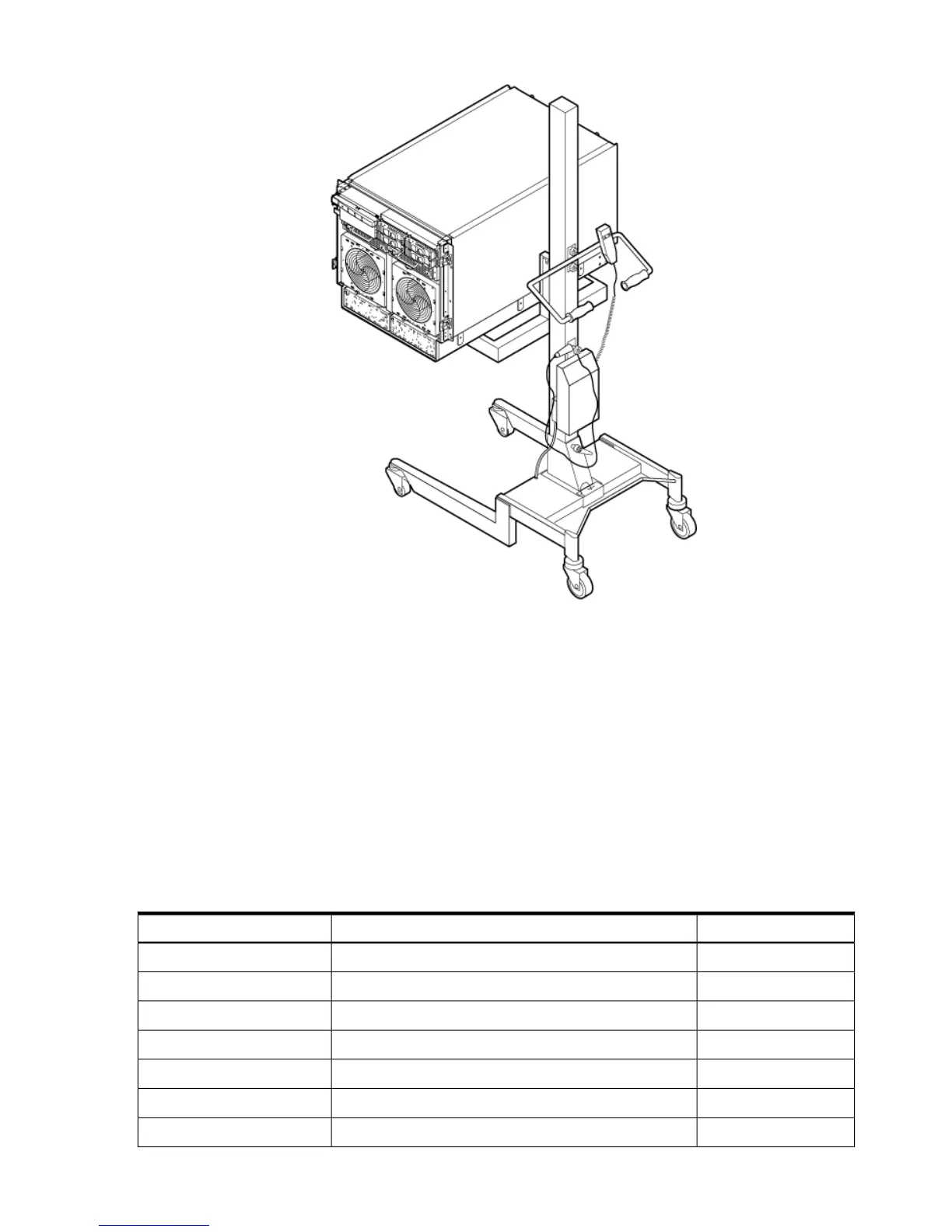

Figure 3-9 Raising the Server Off the Pallet Cushions
6. Carefully roll the lifter and server away from the pallet. Do not raise the server any higher
than necessary when moving it over to the rack.
7. Follow the HP J1530C Rack Integration Kit Installation Guide to complete these steps:
• Mounting the server to the slides
• Installing the cable management arm (CMA)
• Installing the interlock device assembly (if two servers are in the same cabinet)
Wheel Kit Installation
Compare the packing list (Table 3-1) with the contents of the wheel kit before beginning the
installation. For a more updated list of part numbers, go to the HP Part Surfer web site at:
http://www.partsurfer.hp.com.
Table 3-1 Wheel Kit Packing List
QuantityDescriptionPart Number
1Wheel Kit consisting of the following components:A6753-04013
1Side coverA6753-04002
1Side coverA6753-04003
1Top coverA6753-04004
2Caster coverA6753-00007
1Right front caster assemblyA6753-04001
1Right rear caster assemblyA6753-04005
52 Installing the Server
