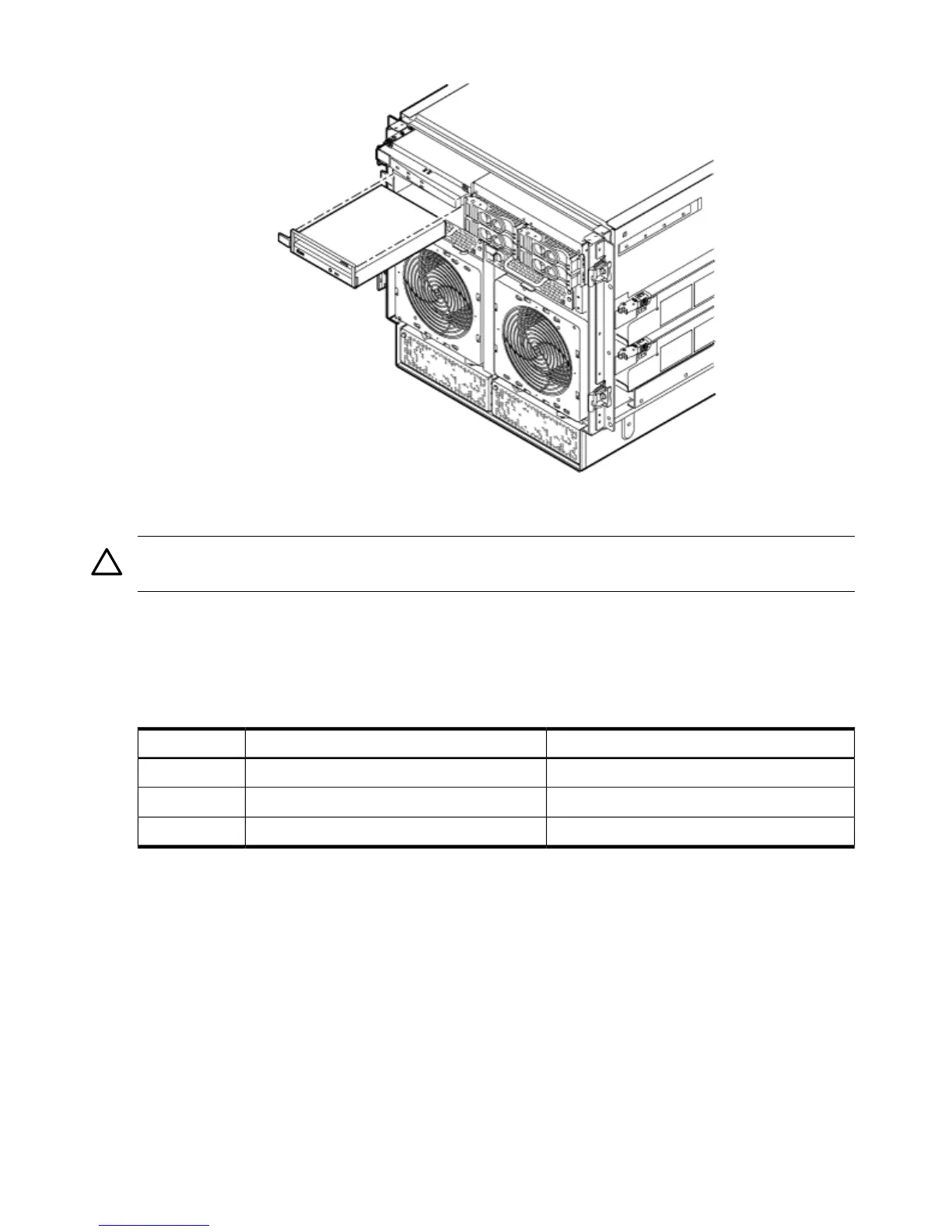

Figure 6-17 DVD/DAT Detail
Installing a Half-Height DVD or DAT Drive.
CAUTION: The following section describes precise instructions for removable media cable
measurement and orientation. Failure to comply will damage drive(s), data, and power cables.
Use this section to configure and install a half-height DVD or DAT drive.
Internal DVD and DAT Devices That Are Not Supported In HP Integrity rx7640
Table 6-3 refers to DVD or DAT drives that are not supported in the HP Integrity rx7640 server.
Table 6-3 Unsupported Removable Media Devices
DAT Product #DVD Product #System
A6182A—DAT40 DDS4 half-heightA6180A—DVD Driverp7410
A9878A—DAT 40Gb half-heightAB351A—DVD+RW half-height
1
rp7420
A9878A—DAT 40Gb half-heightAB351A—DVD+RW half-height
1
rx7620
1. Product number AB351B is supported and supersedes the obsolete AB351A.
Removable Media Cable Configuration for a Half-height DVD or DAT Drive
Installation of the half-height DVD or DAT drive requires that only the Top DVD/DAT SCSI data
cable and one power cable is configured into the removable media drive bay. For proper
installation the power cable must run to the right of the data cable. See Figure 6-18.
158 Removing and Replacing Components
