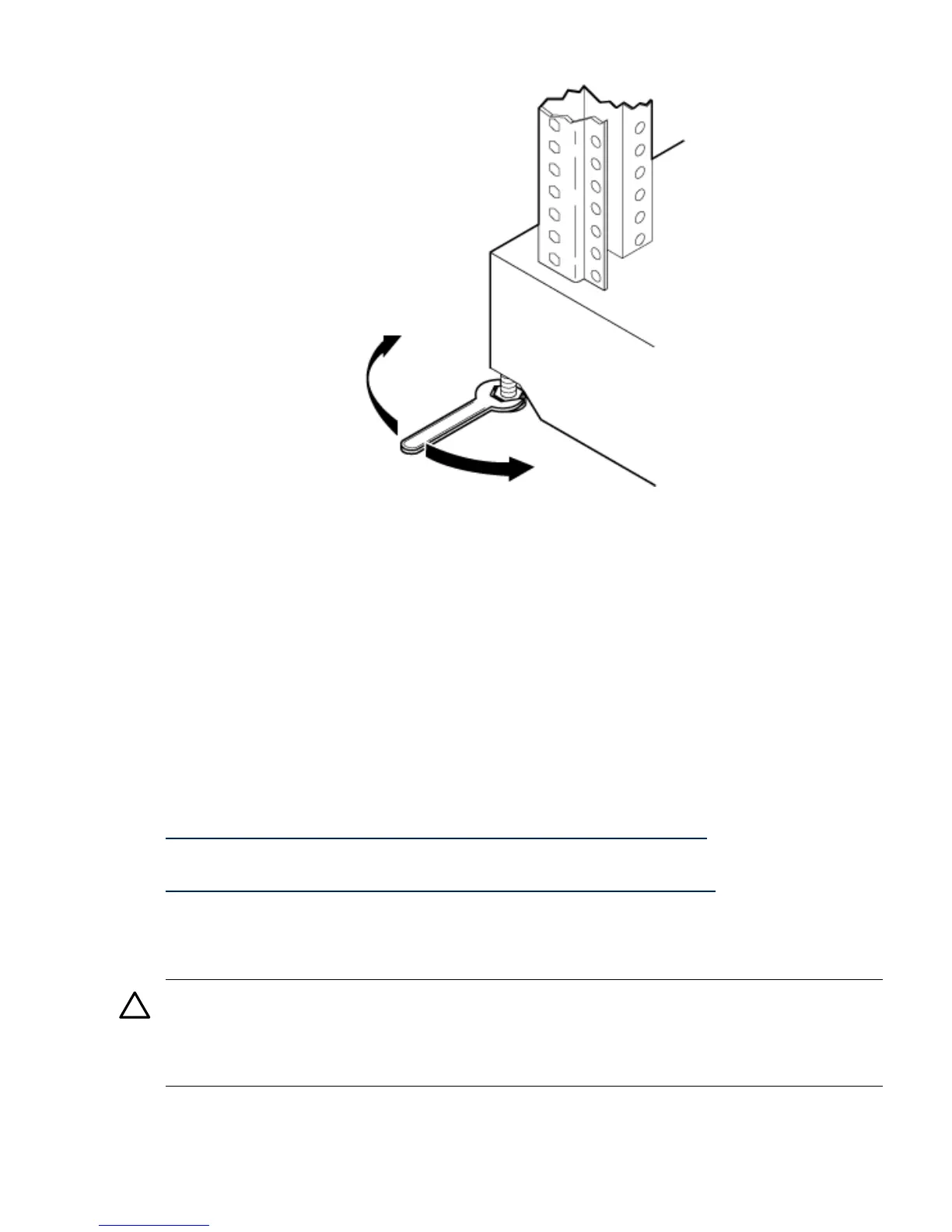

Figure 3-4 Securing the Cabinet
Standalone and To-Be-Racked Systems
Servers shipped in a stand-alone or to-be-racked configuration must have the core I/O handles and
the PCI towel bars attached at system installation. Obtain and install the core I/O handles and PCI
towel bars from the accessory kit A6093-04046. The towel bars and handles are the same part.
Refer to service note A6093A-11.
Rack-Mount System Installation
Information is available to help with rack-mounting the server. This list is intended to guide the
HP Installation Specialist to the documentation that has been written by the Rack and Power
team. The server can be installed in both the 10000 Series Rack and the Rack System/E.
The external Web site is:
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html
The internal Web site for10K Racks is:
http://isspit.corp.hp.com/application/view/ProdCenter.asp?OID=254479
The interal Web site for the System/E Racks is:
http://isspit.corp.hp.com/application/view/ProdCenter.asp?OID=1130382
Lifting the Server Cabinet Manually
Use this procedure only if no HP approved lift is available.
CAUTION: This procedure must only be performed by four qualified HP Service Personnel
utilizing proper lifting techniques and procedures.
CAUTION: Observe all electrostatic discharge (ESD) safety precautions before attempting this
procedure. Failure to follow ESD safety precautions can result in damage to the server.
1. Follow the instructions on the outside of the service packaging to remove the banding and
cardboard top from the server pallet.
Standalone and To-Be-Racked Systems 47
