Two power modules need to be installed for a 24-port LAN switch onsite.
----End
3.10.7 Installing an IVS1800
Context
By default, the IVS1800 is delivered without disks. After the IVS1800 is delivered to
the site, install hard disks as required and then install the IVS1800 in the cabinet.
Procedure
Step 1 Install hard disks.
1. Use a PH2 screwdriver to remove the two black screws on the rear of the
chassis cover, and take
o the chassis cover.

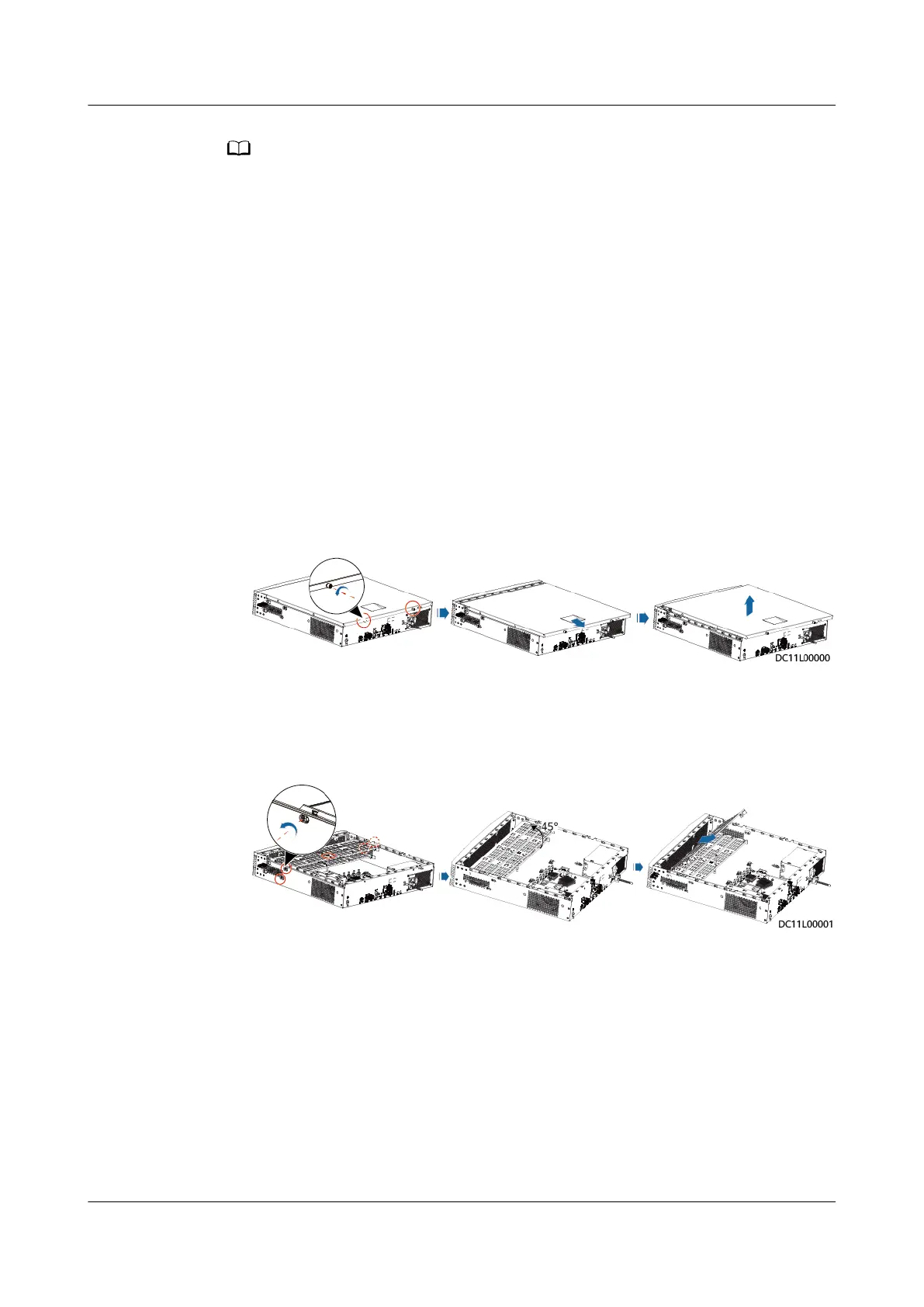

Figure 3-67 Removing the chassis cover
2. Remove two black screws on each side of the chassis and the silvery white
one on top of the hard disk tray, raise the hard disk tray by 45 degrees, and
take out the upper and then lower layers of hard disk tray.
Figure 3-68 Removing the hard disk tray
3. Place the hard disks with ports facing upwards and align the screw holes on
the hard disk tray with the hard disks and fasten the screws. Before the
installation, ensure that the fastener of the hard disk tray is on a
dierent
side from the hard disk port, as shown in the lower left gure.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 91
