3.5.3 Installing a SmartLi Tail Frame
Prerequisites
The depth of the SmartLi is 850 mm. A tail frame needs to be added at the rear to
increase the depth to 1350 mm.
Installing a 500 mm Deep Tail Frame
Step 1 Remove the rear door of the SmartLi.
Step 2 Open the two ends of the folded tail frame to 90° and secure them.

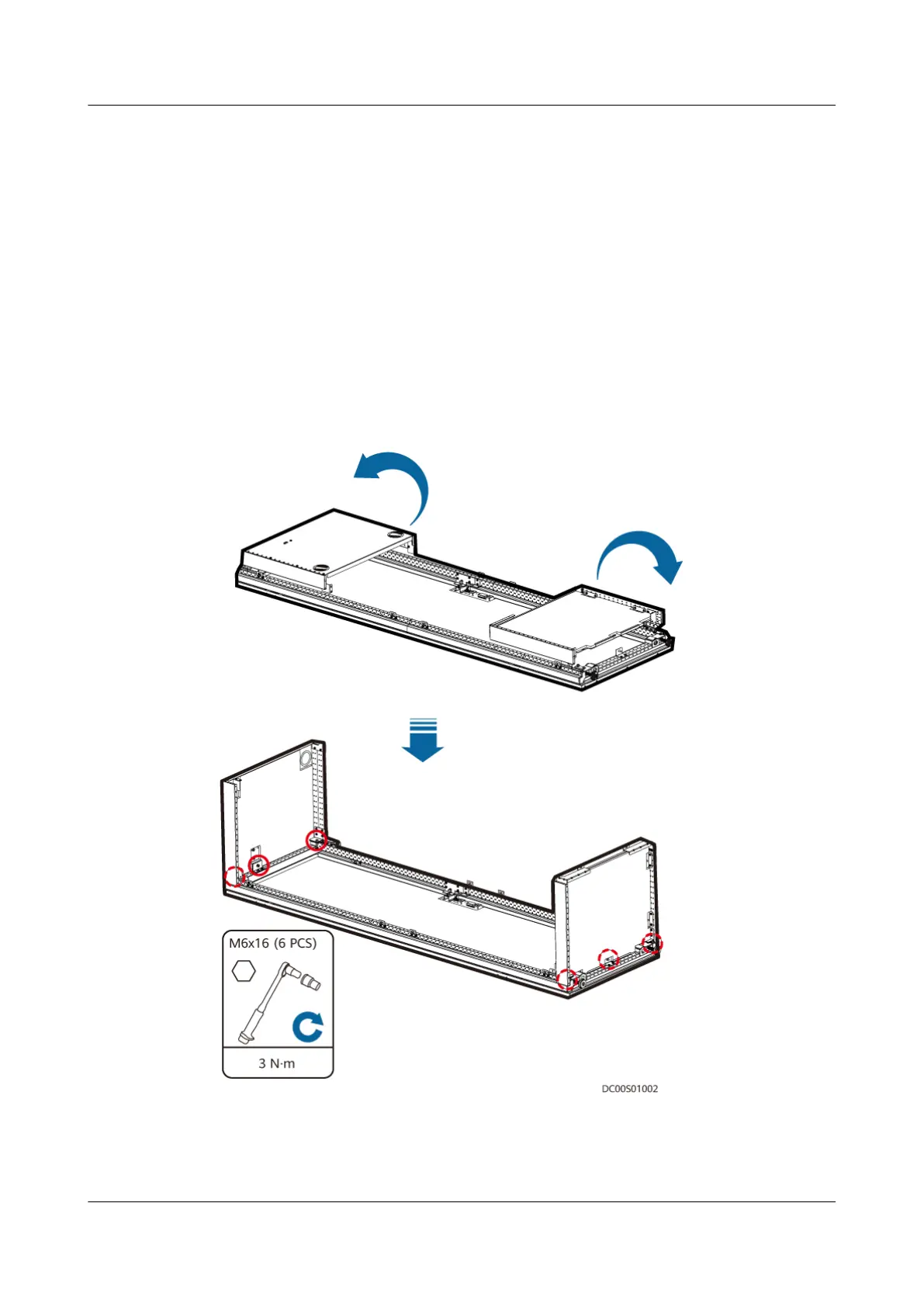

Figure 3-27 Opening and securing the two ends of the tail frame
Step 3 Open the rear door of the tail frame and install the tail frame at the rear of the
SmartLi.
