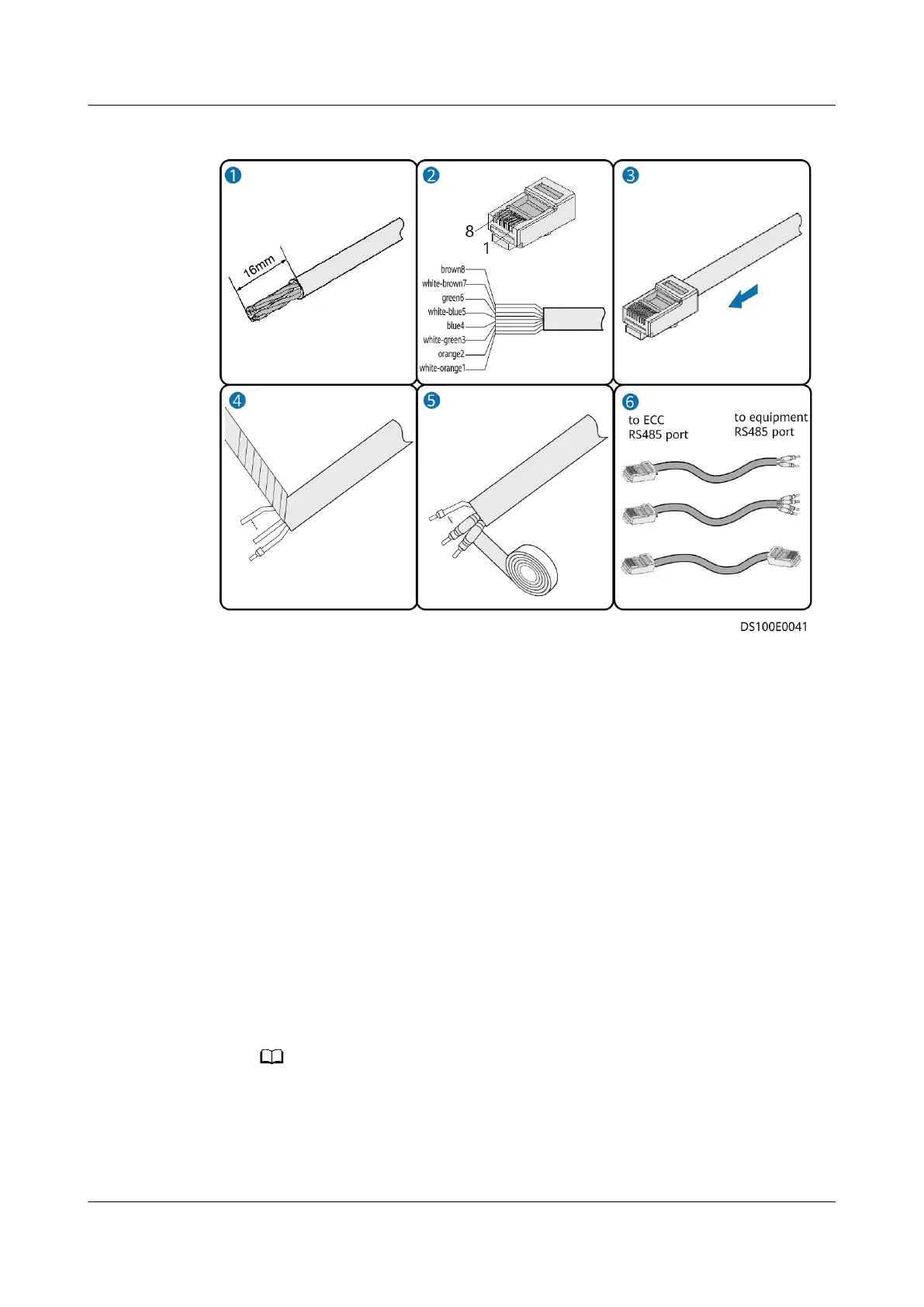

Figure 7-4 Preparing an RS485 monitoring cable for the ECC collector
Preparing a Dry Contact Monitoring Cable
The method of preparing a dry contact monitoring cable is similar to the method
of preparing the RS485 monitoring cable. Prepare cord end terminals on both ends
of each required core wire based on the number of dry contacts.
7.3 Preparing Load Cables
Context
The cables from the power distribution unit to the cabinet rPDU are not
prefabricated and need to be prepared onsite.
Procedure
Step 1 Prepare cables.
1. Strip a cable.
NO TE
The gure uses the single-phase scenario as an example. The required stripping length
in the three-phase scenario is the same as that in the single-phase scenario.
FusionModule2000-S Smart Modular Data Center
User Manual 7 Appendix
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 327
