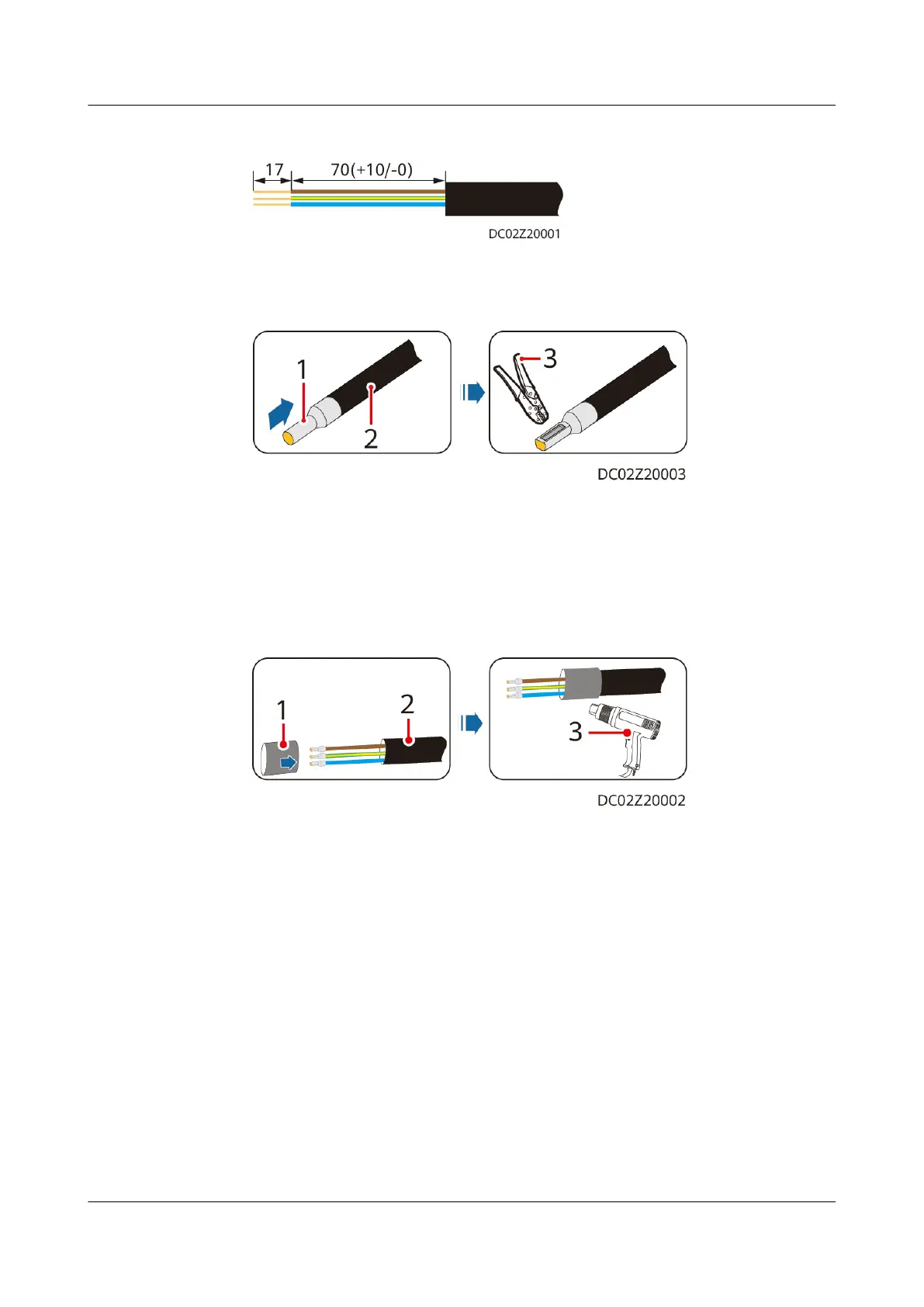

Figure 7-5 Stripping a cable (unit: mm)
2. Crimp a cord end terminal.
Figure 7-6 Crimping a cord end terminal
(1) Cord end terminal (2) Cable (3) Crimping tool
3. (Optional) For a three-core cable with a cross-sectional area of 6 mm
2
, wrap
the cable with two layers of heat shrink tubing and use a heat gun to heat-
shrink the tubing.
Figure 7-7 Crimping a cord end terminal
(1) Heat shrink tubing with
adhesive
(2) Cable (3) Heat gun
Step 2 Install cables at a round connector.
1. Remove the rear cover from the round connector.
2. Loosen the screw on the cable clip.
3. Route the cables through the rear cover.
4. Insert cables into the round connector.
5. Tighten the screws to secure each cable.
6. Reinstall the rear cover.
7. (Optional) Seal the holes where no cables are installed.
8. Tighten the screw on the cable clip to the required torque. Gaps are allowed
on both sides of the cable clip.
FusionModule2000-S Smart Modular Data Center
User Manual 7 Appendix
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 328
