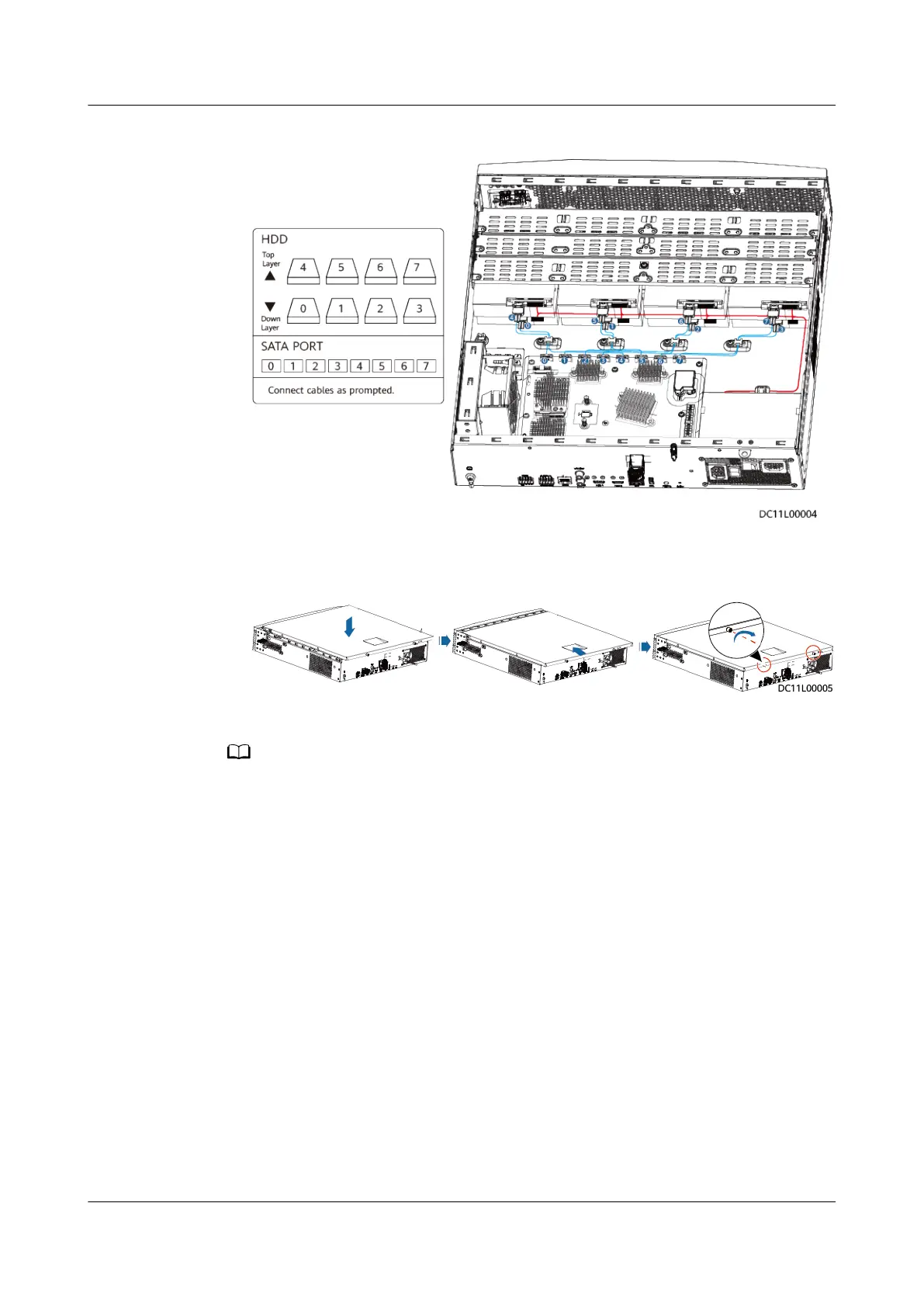

Figure 3-71 Connecting data and power cables to hard disks
6. Close the chassis cover, and use a PH2 screwdriver to fasten the rear screws.
Figure 3-72 Closing the chassis cover
Step 2 Install the device.
● Before installing the IVS1800 in a cabinet, install guide rails to hold the device. If guide
rails have been installed in the cabinet, check whether they match the device and
whether they block the air intake or exhaust vents of the chassis as the fan is located on
the side. If the vents are blocked, change the guide rails.
● By default, the IVS1800 is delivered without disks. After the IVS1800 is delivered to the
site, install hard disks as required and then install the IVS1800 in the cabinet.
● Do not attach rubber feet on the IVS1800 to save space during cabinet installation.
1.
Conrm the installation location of guide rails in the cabinet. Install cage nuts
(two at the front and three at the back on each side) to secure the guide rails
at the proper position in the cabinet, as shown in the lower left
gure. The
lower right gure shows how to install cage nuts.
1. Insert a cage nut into the square hole from the inside of the cabinet and
clamp it to the lower frame of the square hole.
2. Use a mounting bar to pull the cage nut until it clamps the upper frame of
the square hole.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 93
