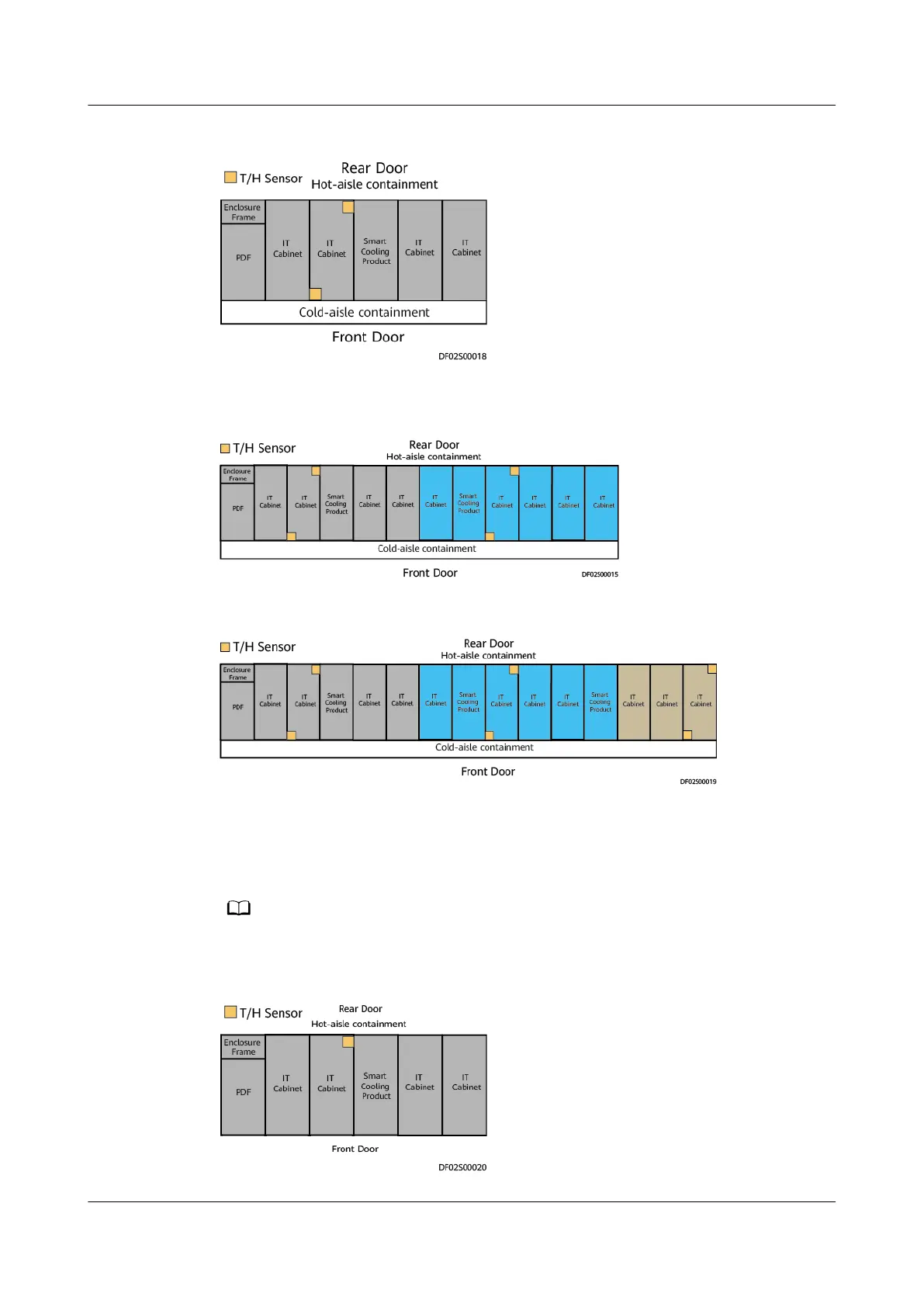

Figure 3-92 Cold and hot aisle containment scenario (number of cabinets ≤ 6)
Figure 3-93 Cold and hot aisle containment scenario (6 < number of cabinets ≤
12)
Figure 3-94 Cold and hot aisle containment scenario (number of cabinets > 12)
Hot Aisle Containment
● In the hot aisle containment scenario, install a T/H sensor on the rear door of
one in every six cabinets, where the cabinet is an IT cabinet.
NO TE
Components shown in the same background color belong to the same area.
Figure 3-95 Hot aisle containment scenario (number of cabinets ≤ 6)
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 105
