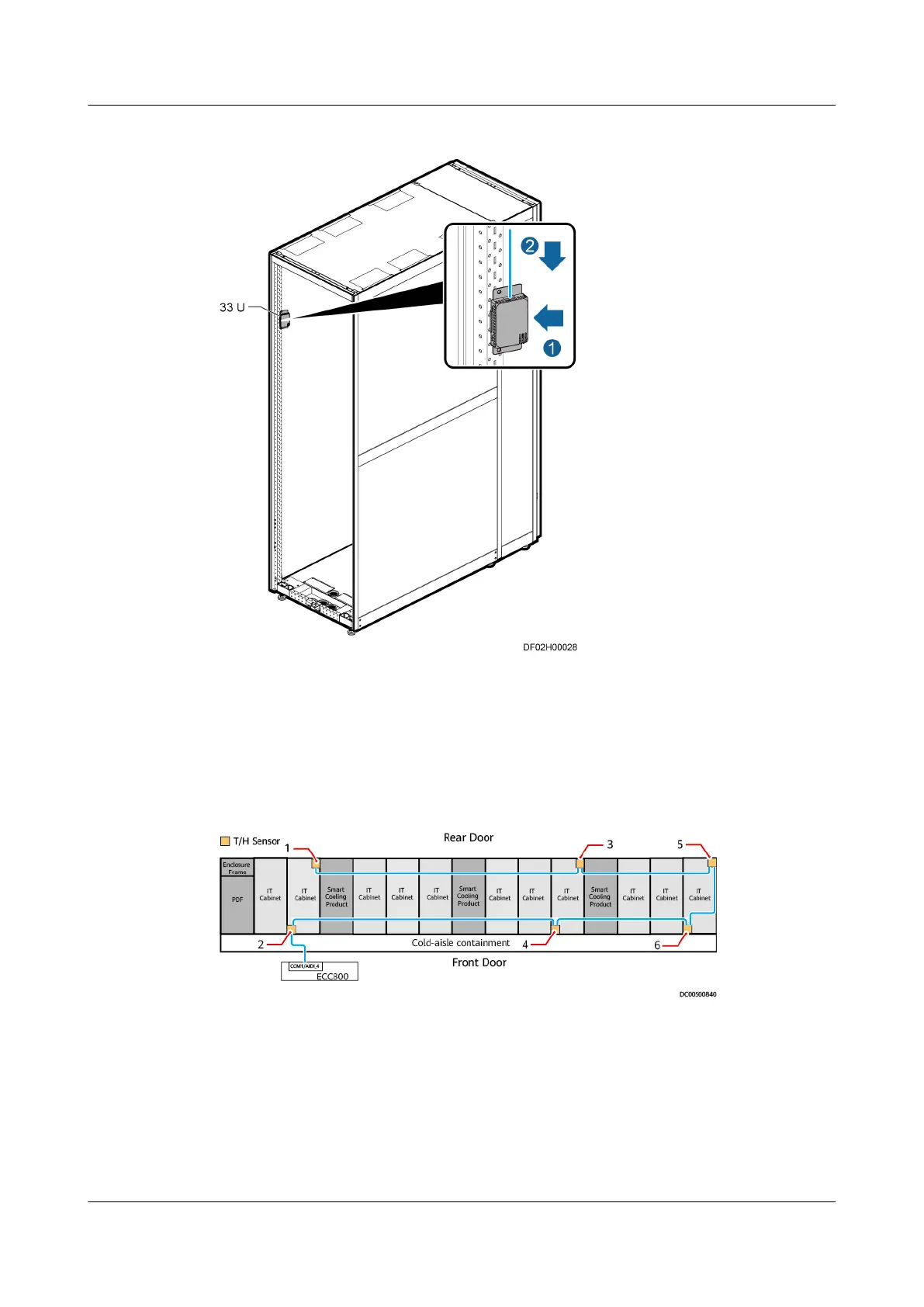

Figure 3-98 Installing a T/H sensor
Step 2 Set a device address for the T/H sensor.
Operate the DIP switch on the T/H sensor to set the device address for the sensor.
Toggle switches 1 to 6 specify the device address in binary mode. ON indicates 1,
and OFF indicates 0.
Figure 3-99 DIP switch settings for T/H sensors (cold and hot aisle containment
scenario)
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 107
