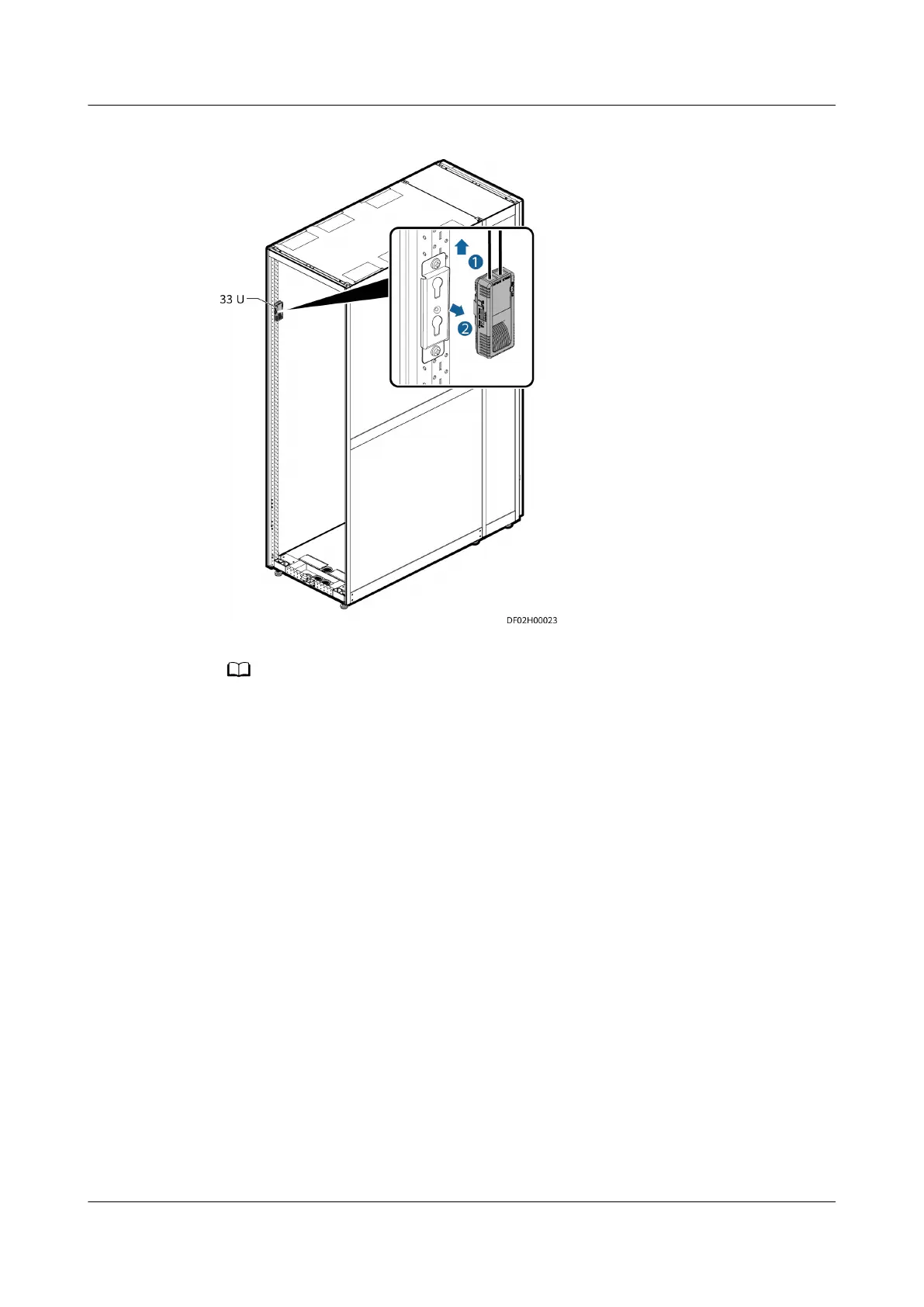

Figure 6-24 Removing a T/H sensor
Before installing the new T/H sensor, check that its DIP switch settings are consistent with the
DIP switch settings of the old T/H sensor.
Step 4 Connect cable terminals to RS485_IN and RS485_OUT ports, and install the new
T/H sensor in the correct position.
FusionModule2000-S Smart Modular Data Center
User Manual 6 Operation and Maintenance
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 318
