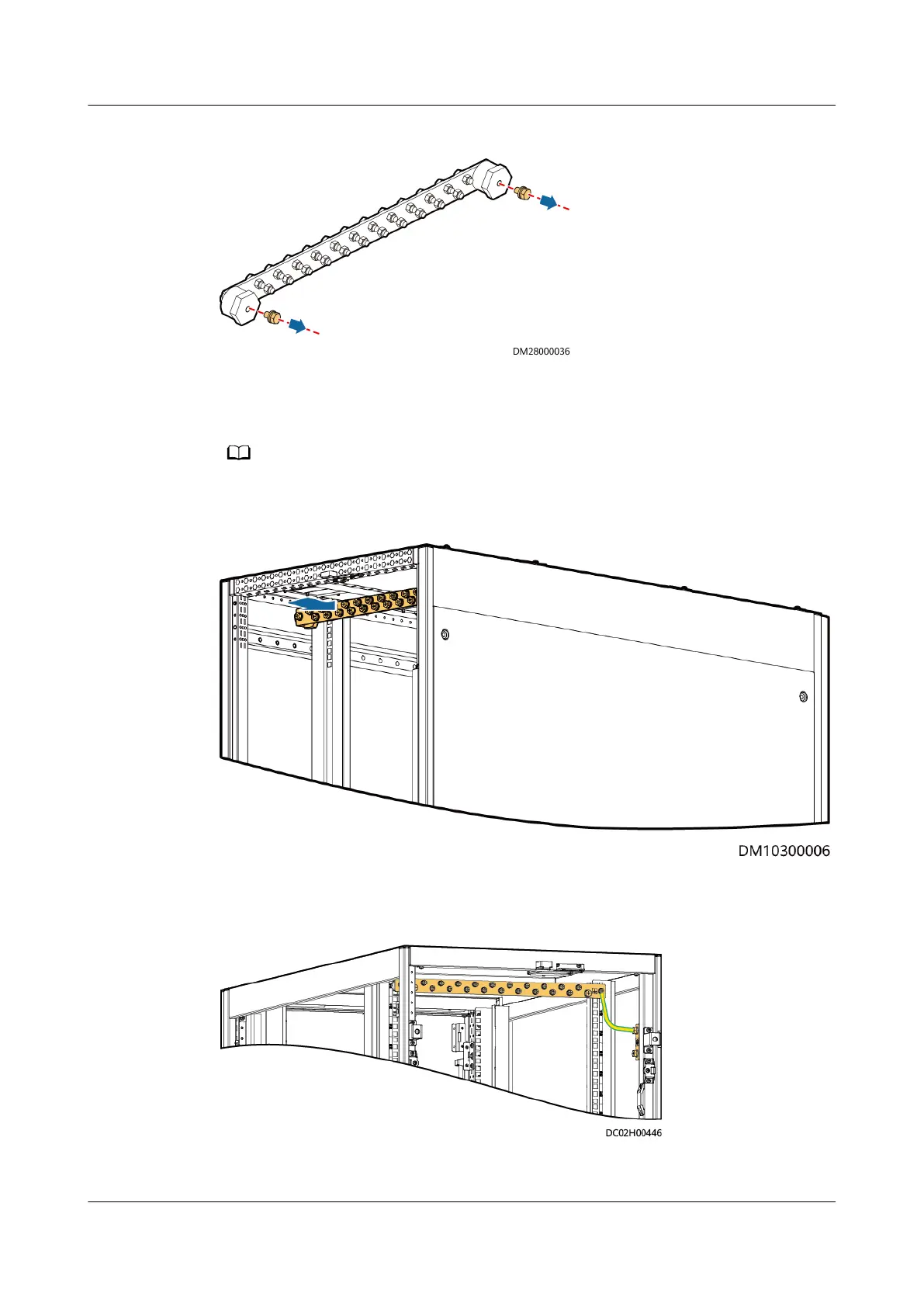

Figure 3-21 Removing M8 screws
Step 2 Open the cabinet rear door, install the horizontal ground bar on the topmost
position on the outside of the mounting bar, and secure the ground bar using the
M8 screws removed earlier.
NO TE
Install the horizontal ground bar in the battery cabinet or IT cabinet adjacent to the PDF.
Figure 3-22 Installing a horizontal ground bar
Step 3 Connect the copper bar ground cable.
Figure 3-23 Copper bar grounding
----End
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 55
