Quidway S1700 Series Ethernet Switches
Web User Manual 4 Interface Configuration
Issue 01 (2011-11-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
33

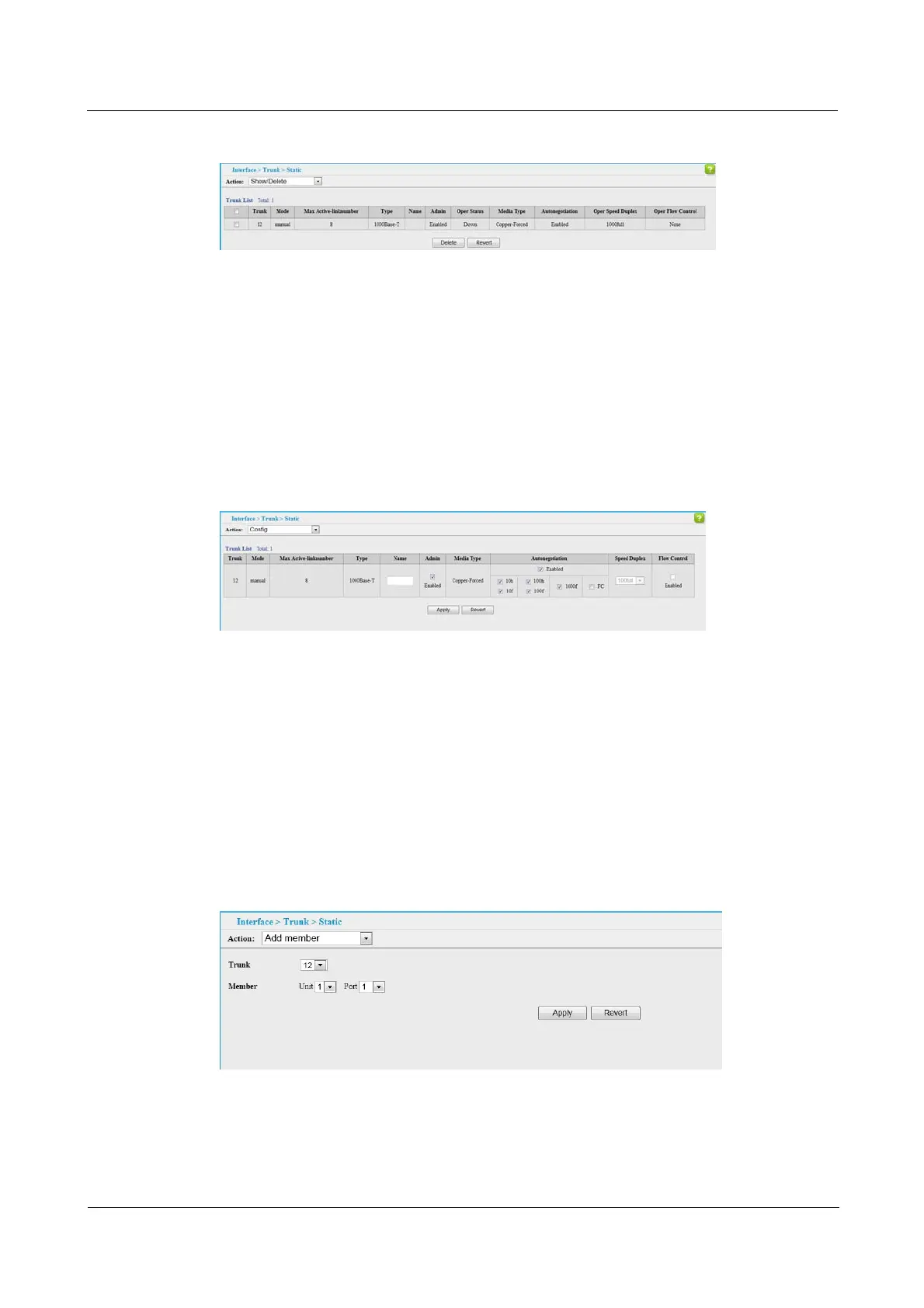

Figure 4-10 Showing/Deleting Information for Trunks
----End
To configure connection parameters for a trunk:
1. Click Interface > Trunk > Static. Select Config from the Action list. Figure 4-11 is displayed.
2. Modify the required interface settings.
3. Click Apply.
Figure 4-11 Configuring Connection Parameters for a Trunk
----End
To add member for a trunk configured on the switch:
1. Click Interface > Trunk > Static. Select Add member from the Action list. Figure 4-12 is
displayed.
2. Select a trunk identifier, and mark the ports assigned to the trunk.
3. Click Apply.
Figure 4-12 Adding member for Trunks
----End
