Chapter 10 Appendix
278

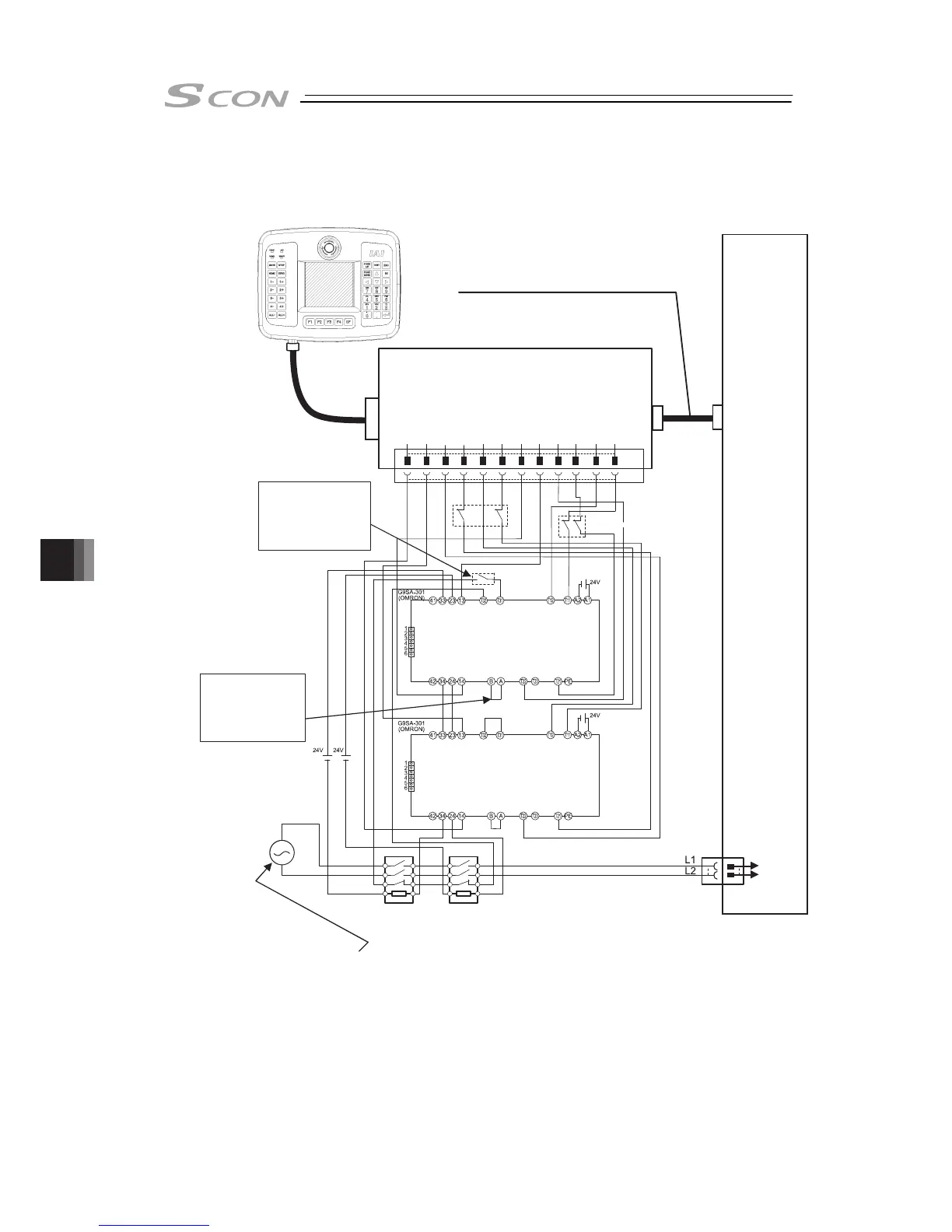

3) In case of category 3 or 4
TB-01D(R)
(or Dummy plug: DP-4S)
Connection Cable CB-CON-LB***
Controller
● SCON
ENBOUT ENBIN ENB2+ ENB2- ENB1+ ENB1- EMGOUT EMGIN EMG2+ EMG2- EMG1+ EMG1-
RCB-LB-TGS
Motor
Power
Supply
Motor Power Supply
SCON : 100V AC/200V AC
12 11 10
9 8 7 6 5 4 3 2 1
Solenoid Contactor Solenoid Contactor
Enable SW
Reset SW
Emergency Stop SWEmergency Stop SW
For Category 4, insert
Reset Switch as shown
in the diagram.
For Category 3, layout
the wiring without
inserting Reset Switch.
For Category 4, make
the connection of A
and B open.
For category 3, make
a short circuit
between A and B.
