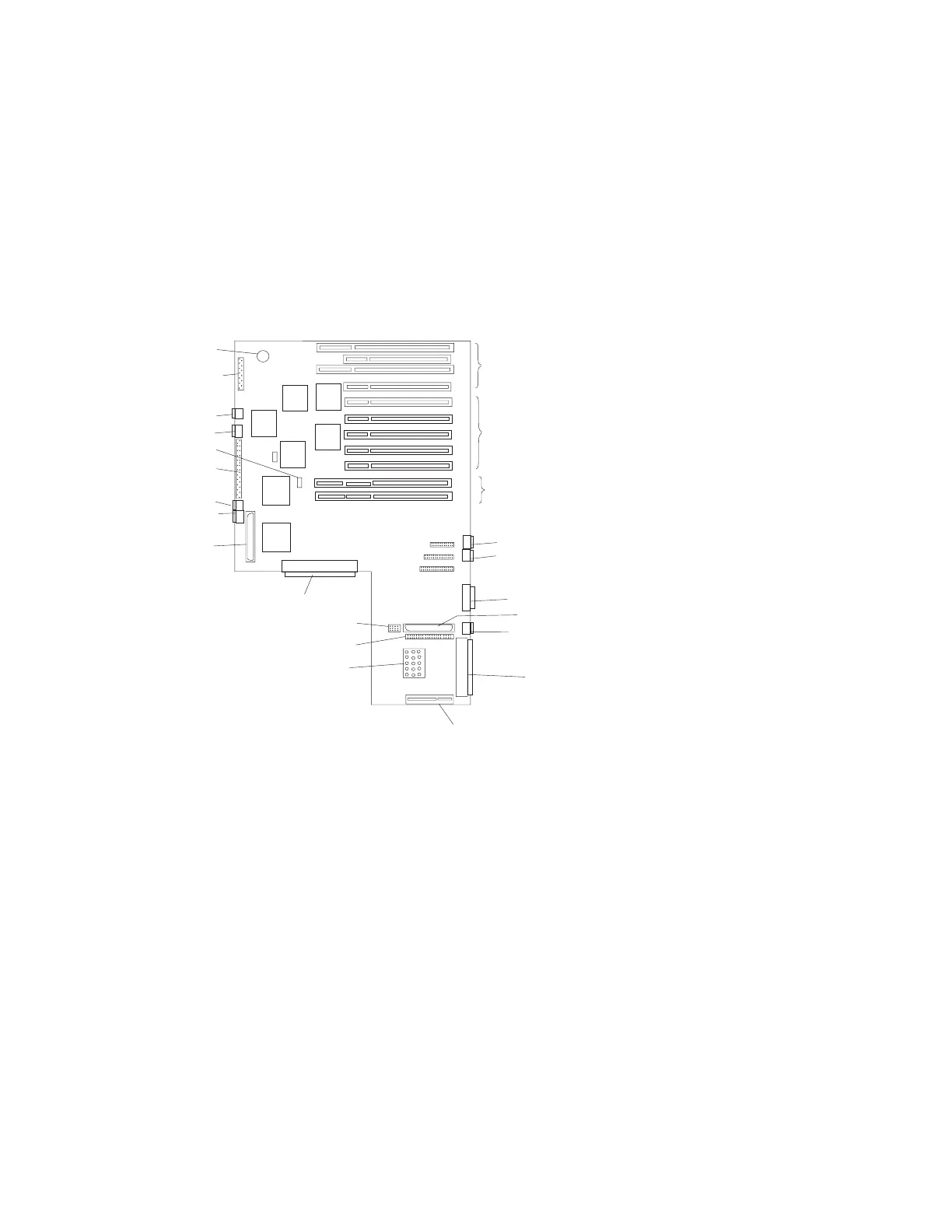

I/O Planar Locations
J11
P1
P2
J10
J21
J16
J47
J41
J50
J30
J18
J23
J27
64 Bit
PCI Slots
Shared ISA/PCI
Slots
PCI Slots
J26
J25
J12
J17
J13
J15
J51
J19
J22A
J43
J1
J2
J3
J4
J5
J6
J7
J8P
J8I
J9I
J9P
J1, J2 64-bit PCI connectors
J3, J4, J5, J6, J7, J8P, J9P 32-bit PCI connectors
J8I, J9I ISA connectors
J10 Service Processor
J11 External SCSI connector
J12 Fan #1 (Bottom Fan)
J13 Diskette Drive connector
J15 Fan #3
J16 SCSI Security Jumper
J17 Fan #2
J18 Ethernet connector (thick)
J19 Fan #4 (Top Fan)
J21 Ethernet connector (twisted pair)
J22A Operator Panel
1-4 Service Guide
