Operator Panel Display
Removal
1. If you have not already done so, remove the front covers as described in
“Covers” on page 6-3.

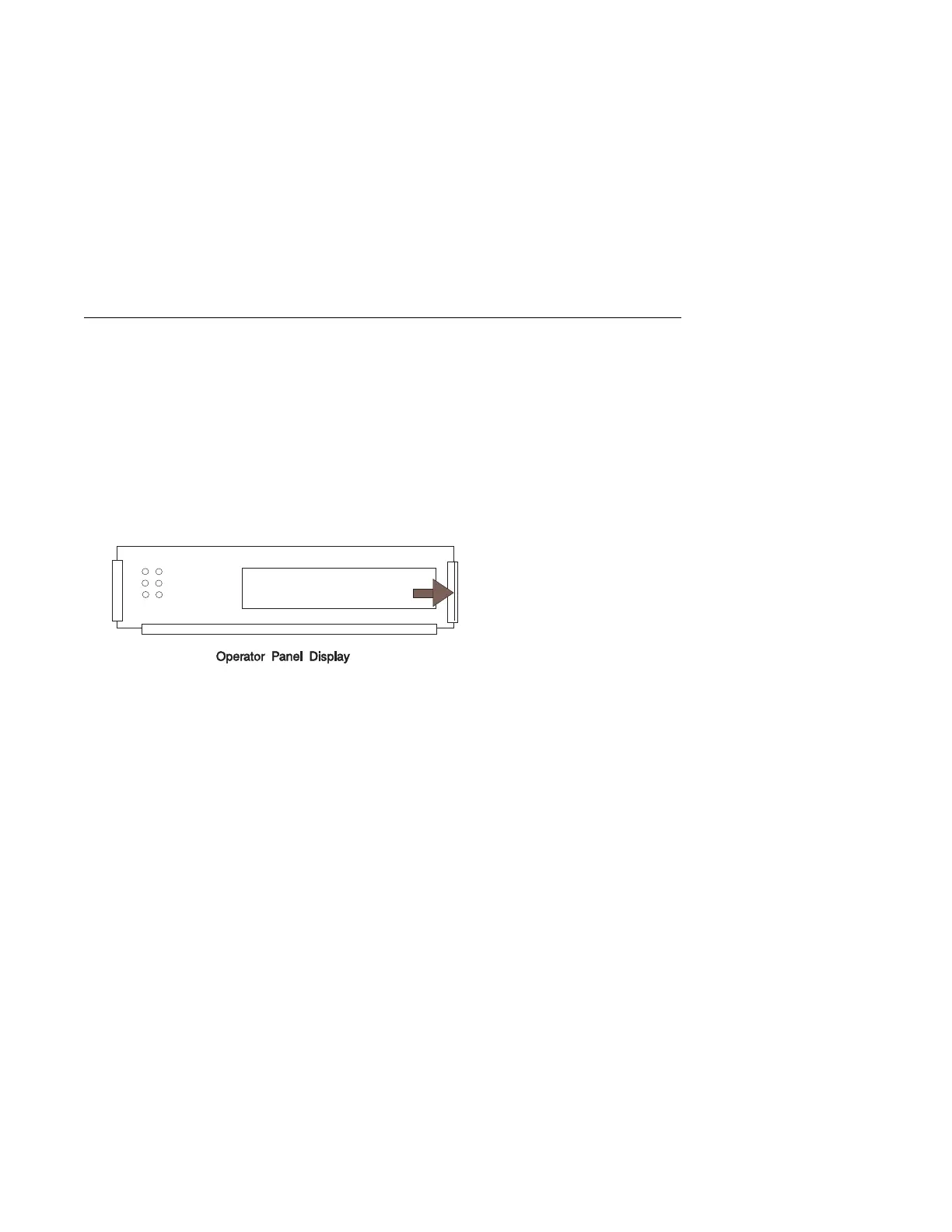

2. Press the snap in detent on the right side of the display card mounting bracket
and remove the display card.
3. Rotate the display forward and out of the mounting bracket.
4. Disconnect the display cable from the connector on the display assembly.
Replacement
Replace in reverse order. Ensure that the grounding clips located inside the
mounting bracket are not bent or damaged and that they are positioned correctly.
6-44 Service Guide
